DengFu Winice E55 AM Carbon Frame 27.5er/29er M620 In Stock FREE Shipping

$1,199.00 $850.00 29.1% OFF

Weight7.7 kg
Dimensions108 × 25 × 61 cm
Frame Color

Red_Glossy, Black_Matt

Frame Size

17"(M), 19"(L)

FREE Shipping

United States Only

FREE Shipping

In Stock

SKU: N/A Category: Tag:
1000W (160N.m)

Motor Capacity

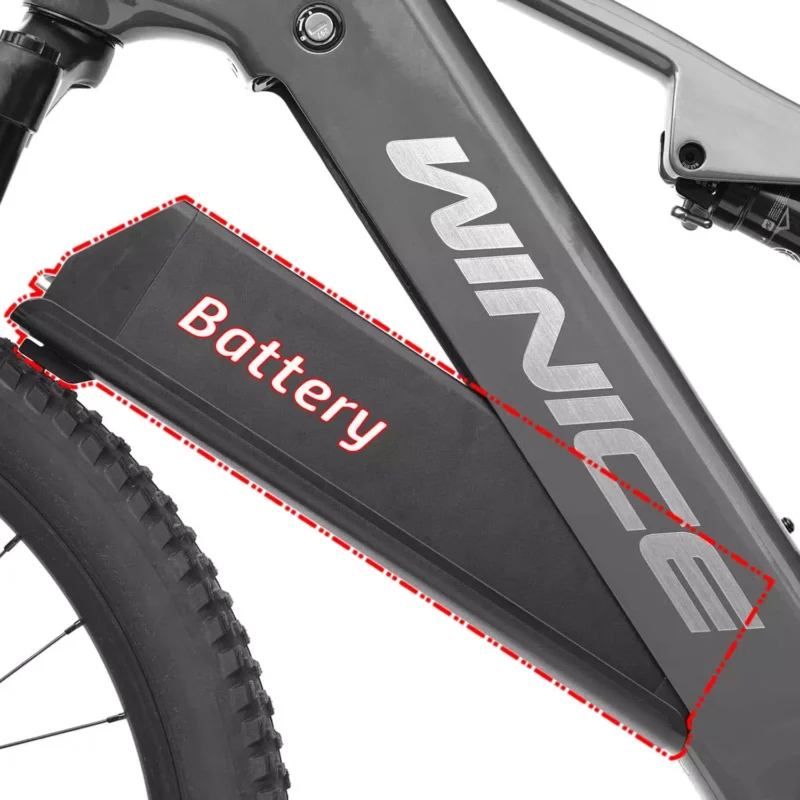

52V 20Ah

LG Batteries

80-100 miles

Ranges

SRAM or Shimano

Shift System

400 lbs

Payload Capacity

25/32/45(km/h)

Speed Limit

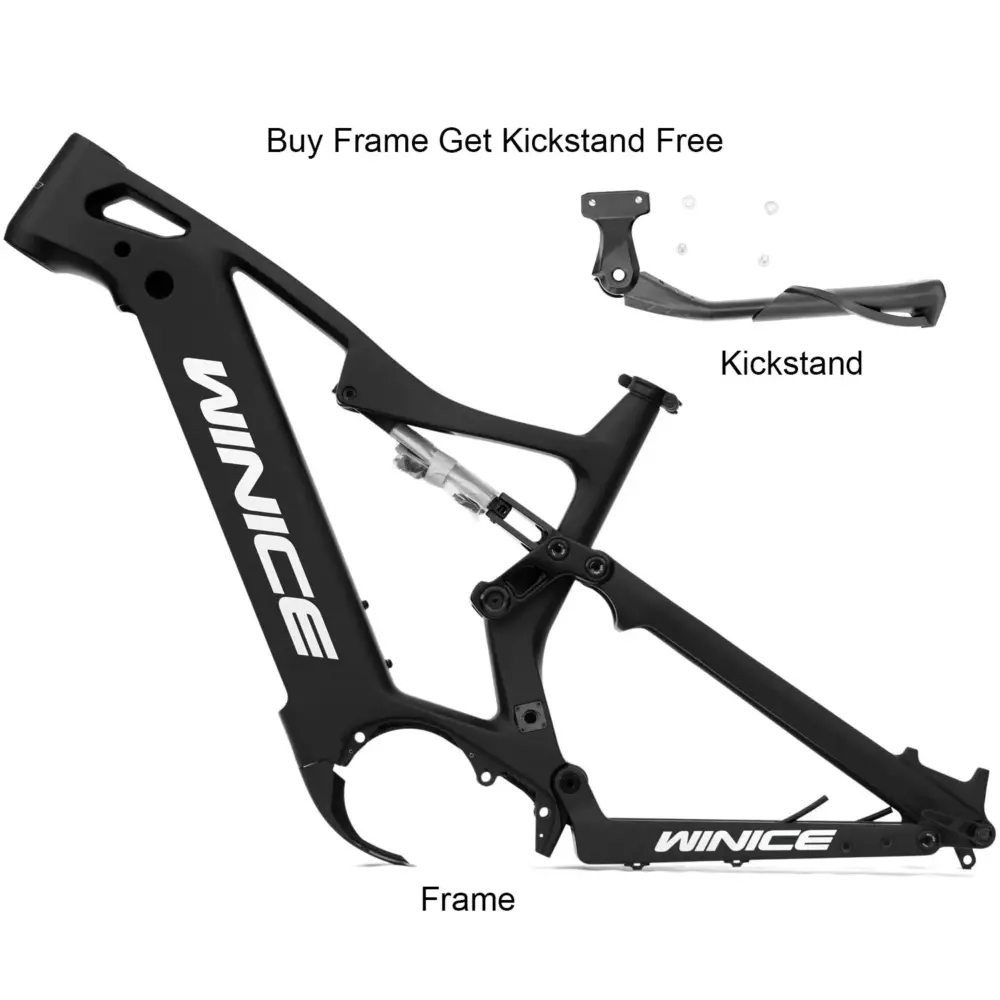

DengFu Winice E55 Frame AM Carbon Frame

DengFu Winice E55 Frame AM Carbon Frame is a AM mountain E-bike carbon frame, Include frame and motor cover.Fit BAFANG M620 motor and maximum support 52V 20Ah 1040Wh battery.
Play Video

Specification And Geometry

TORAY Carbon Fiber

Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.
carbon_fiber

"WINICE" Logo

Winice is one of the registered trademarks of DengFu.

AM E-Bike Axle Distance

148×12mm thru axle, Generally equipped with 27.5er x2.6″ or 29er x2.6″tire.

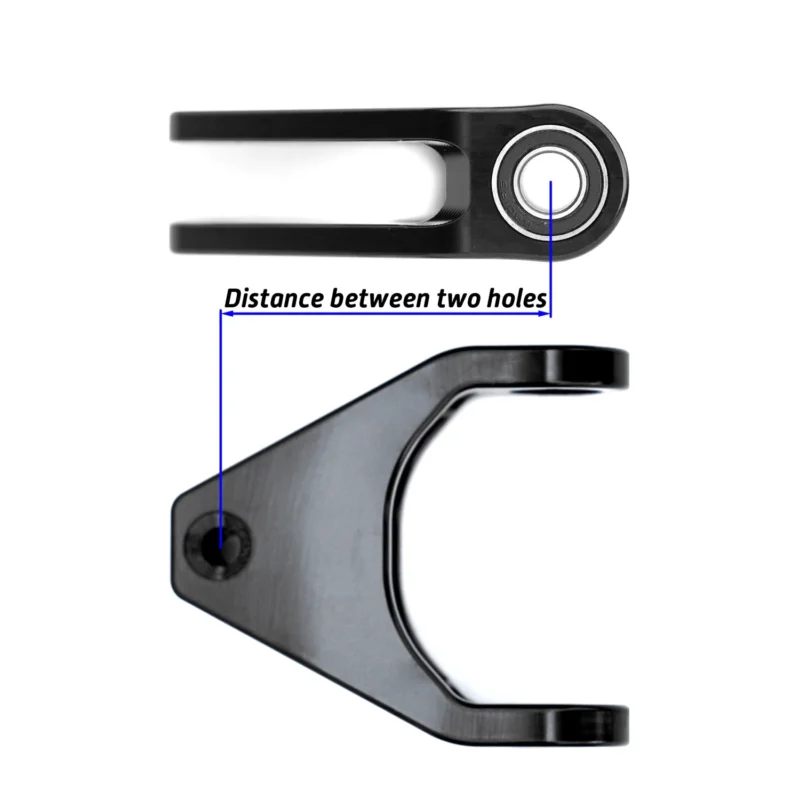

Rear Shock Connecting Rod

50mm connecting rod.

Increase the strength of the head tube

A hole is added to the side of the head tube, which has been verified through testing to enhance the structural strength of the head tube.

Frame Size Label

M size is 17″

L size is 19″

Internal cable routing

Internal cable routing gives the bike a sleek, tight and attractive look.

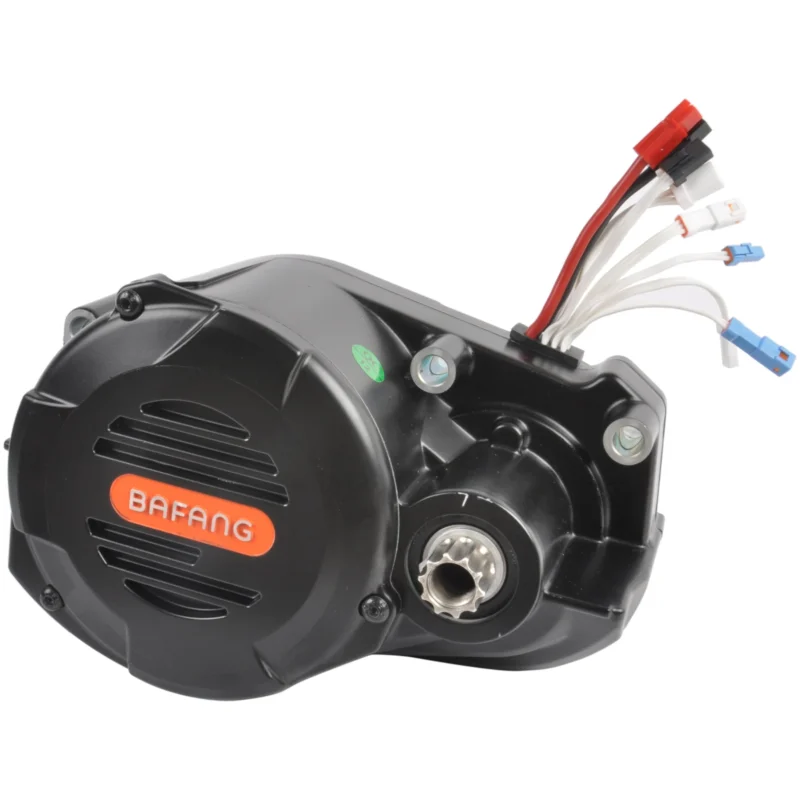

Motor Slot

Install BAFANG M620 motor in the motor slot.

Rear Derailleur Hanger

Removable and replaceable aluminum alloy rear derailleur hanger.

Motor Cover

The cover has three screws.

Kettle bracket installation position

Screw holes for mounting the kettle bracket.

Rear Axle

Rear Axle with removal handle,Can be disassembled quickly and easily.

Motor Slot And Motor Cover

Frame including motor cover.

Reviews

There are no reviews yet.

Be the first to review “DengFu Winice E55 AM Carbon Frame 27.5er/29er M620 In Stock FREE Shipping”
Review now to get coupon!

Your email address will not be published. Required fields are marked *

Shopping Cart

Specification And Geometry

Type E-MTB
Frame TORAY T700 carbon fiber, 148x12mm thru axle. internal cable routing, post mount disc brake, 148×12 thru axle.
Frame travel 150mm
Motor BAFANG M620
Battery Rhino Lithium-ion 48V/52V 20Ah
Suitable rear shock 230x60mm/linkage 50mm
Headtube 1 1/2″ 56mm
Cable routing internal
Max tire 29erx2.6” or 27.5erx2.8″
Finish Matt/Glossy
Include Frame, Motor cover, Headset, Thru axle,
