$2,899.00 – $3,599.00

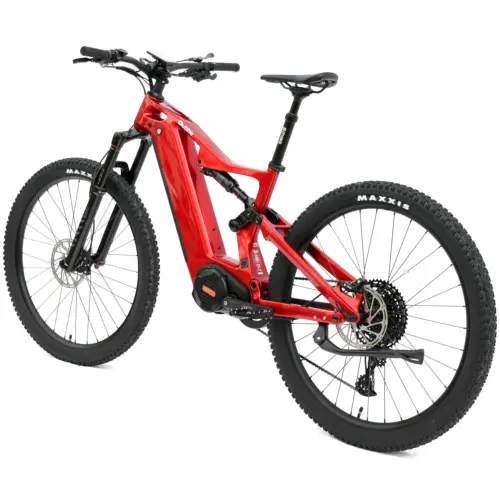

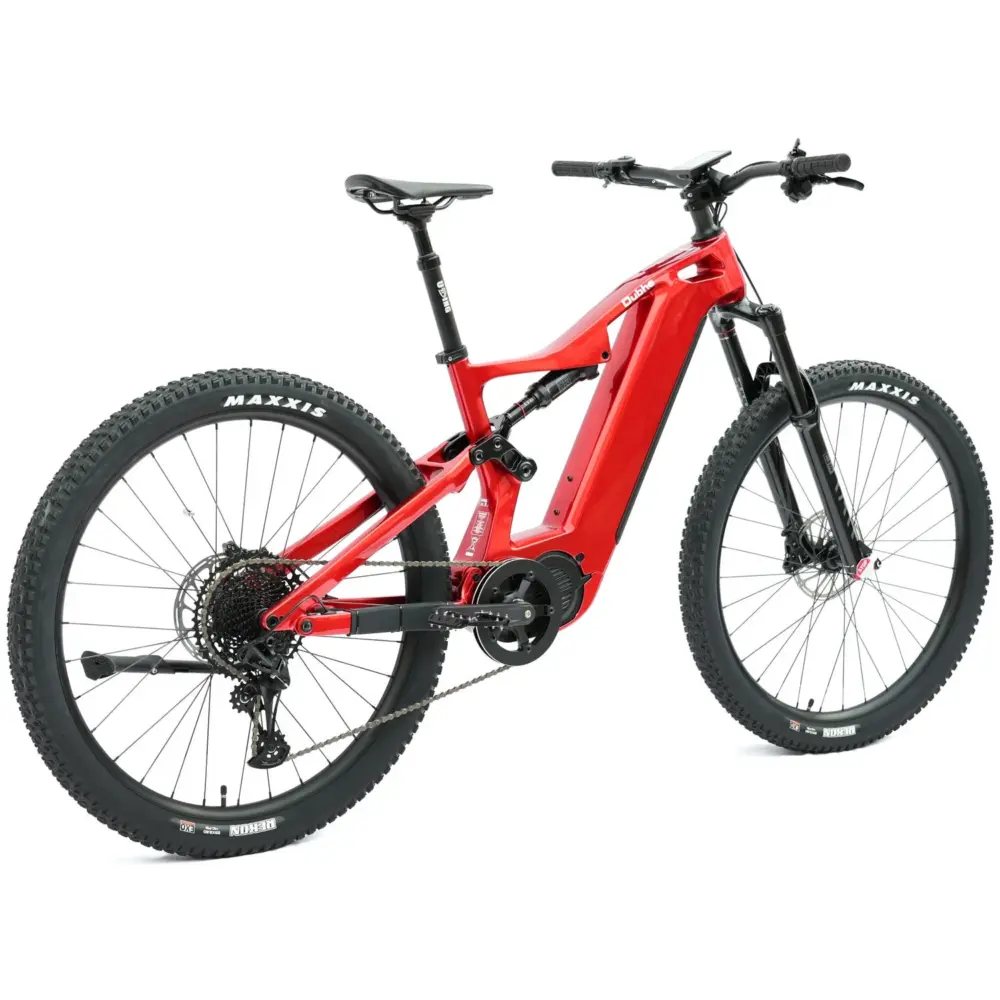

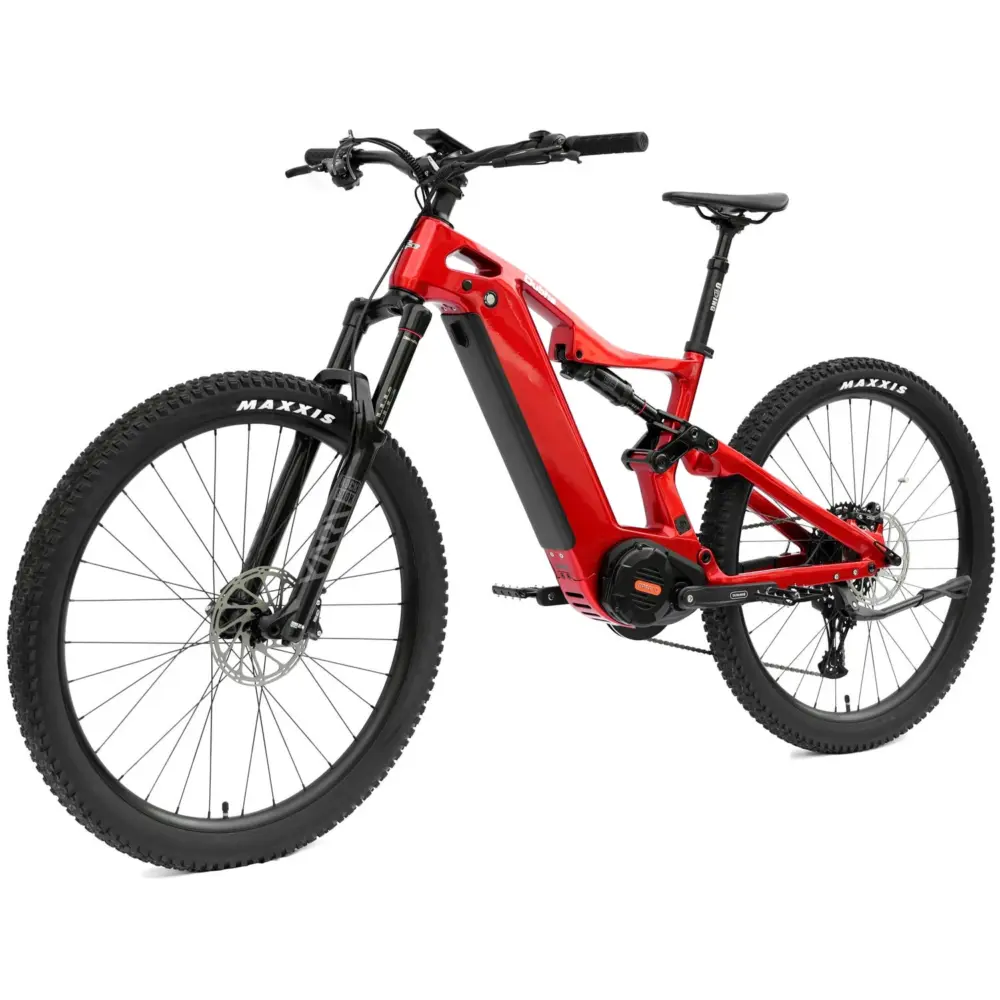

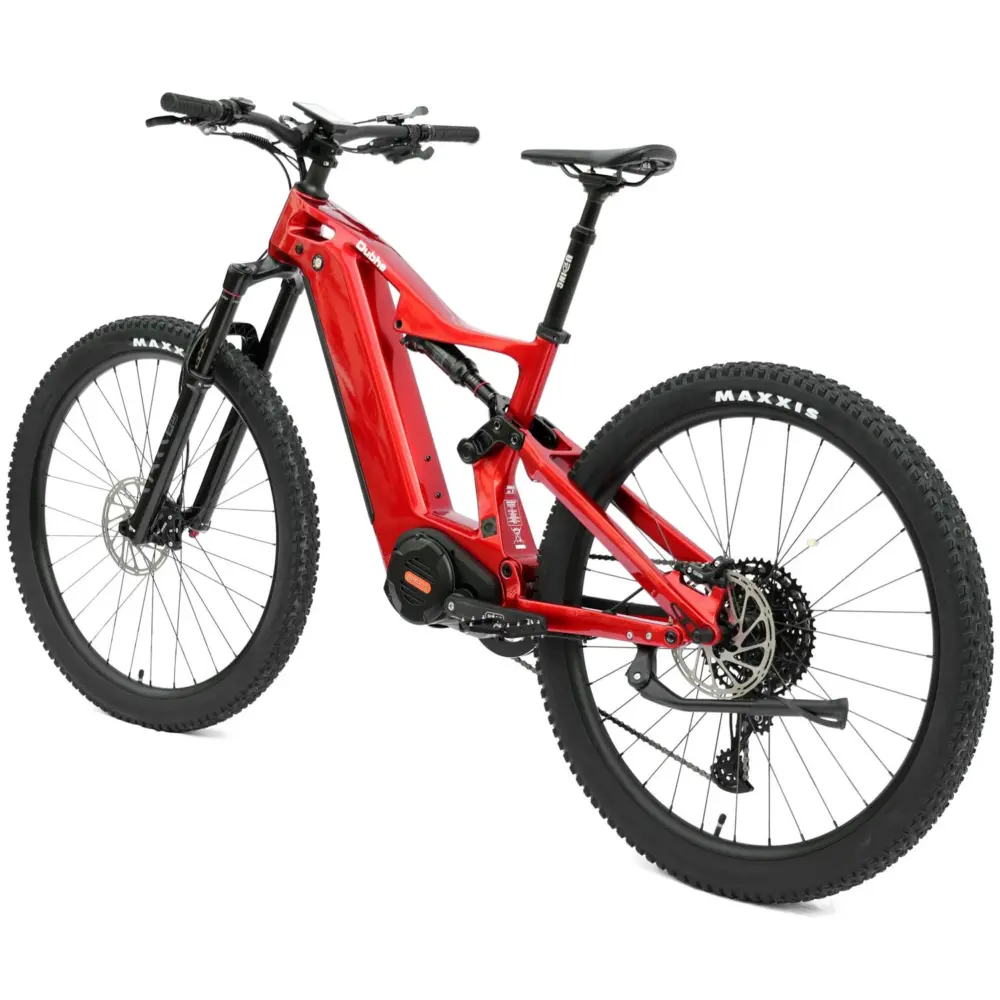

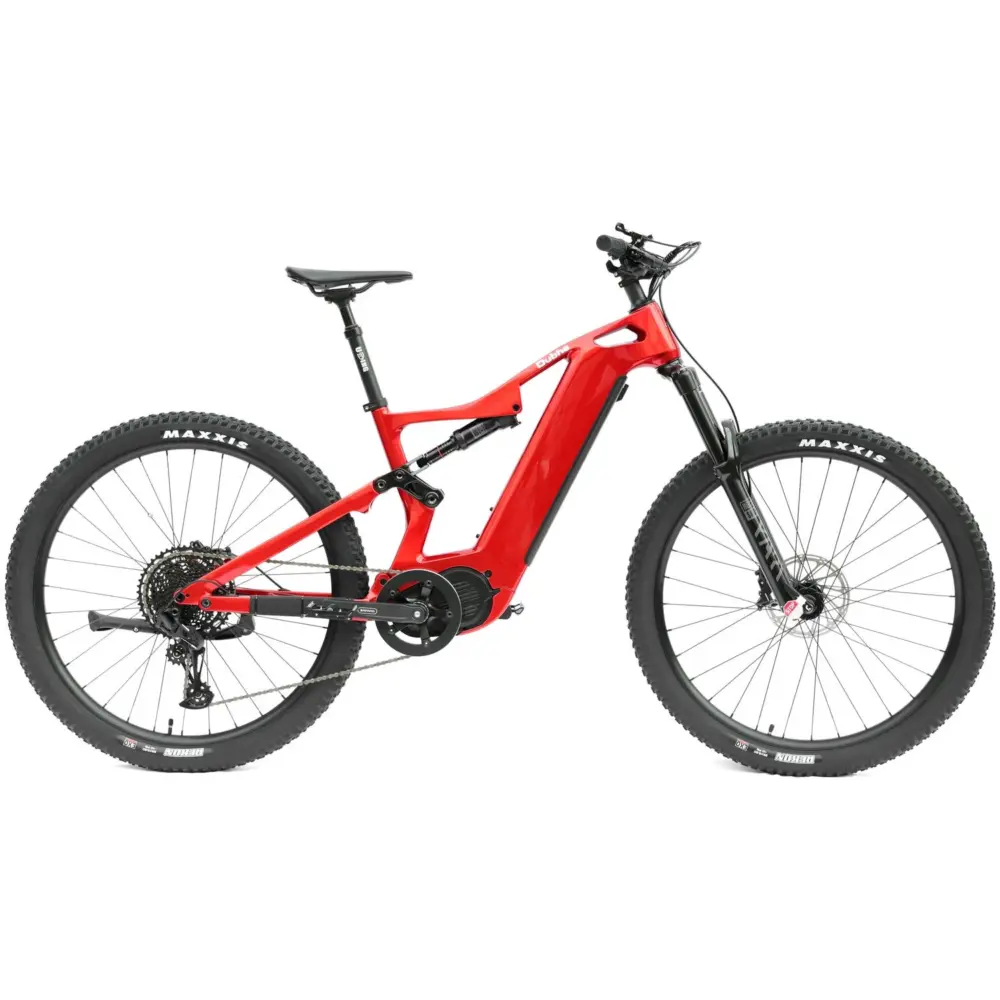

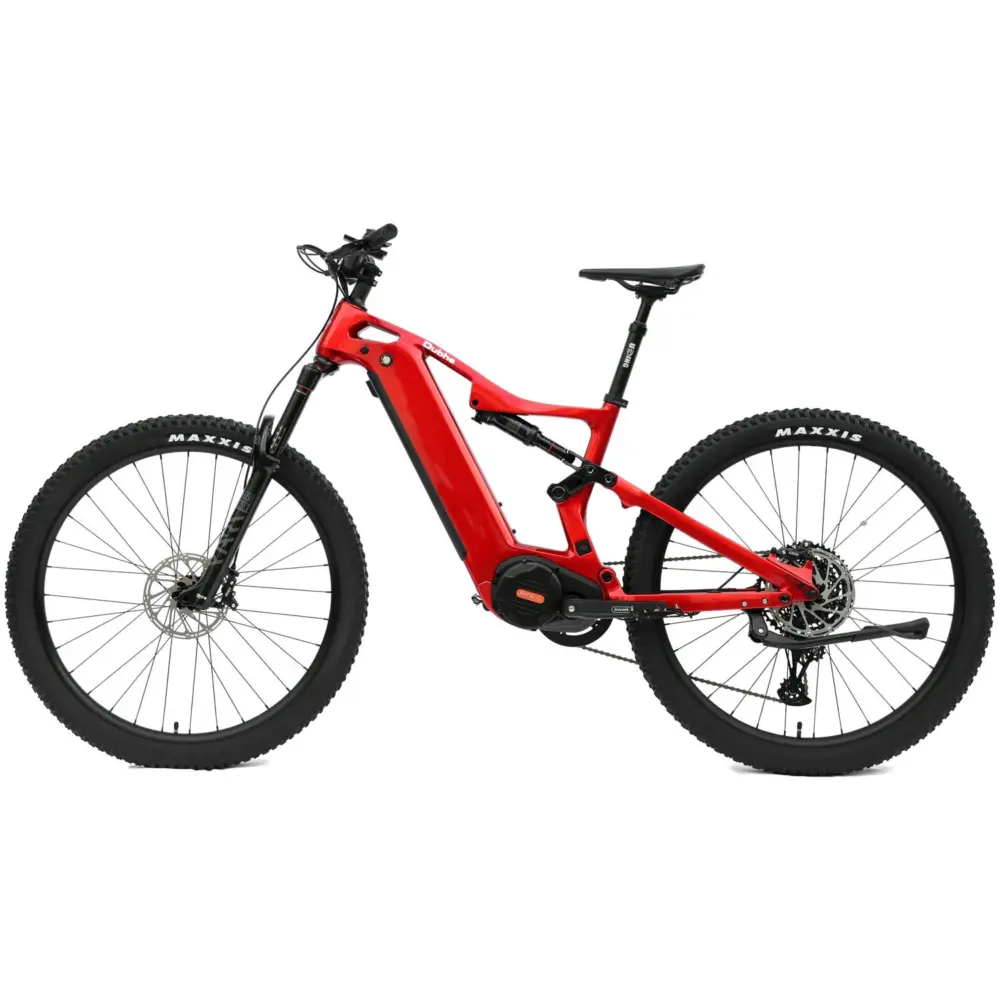

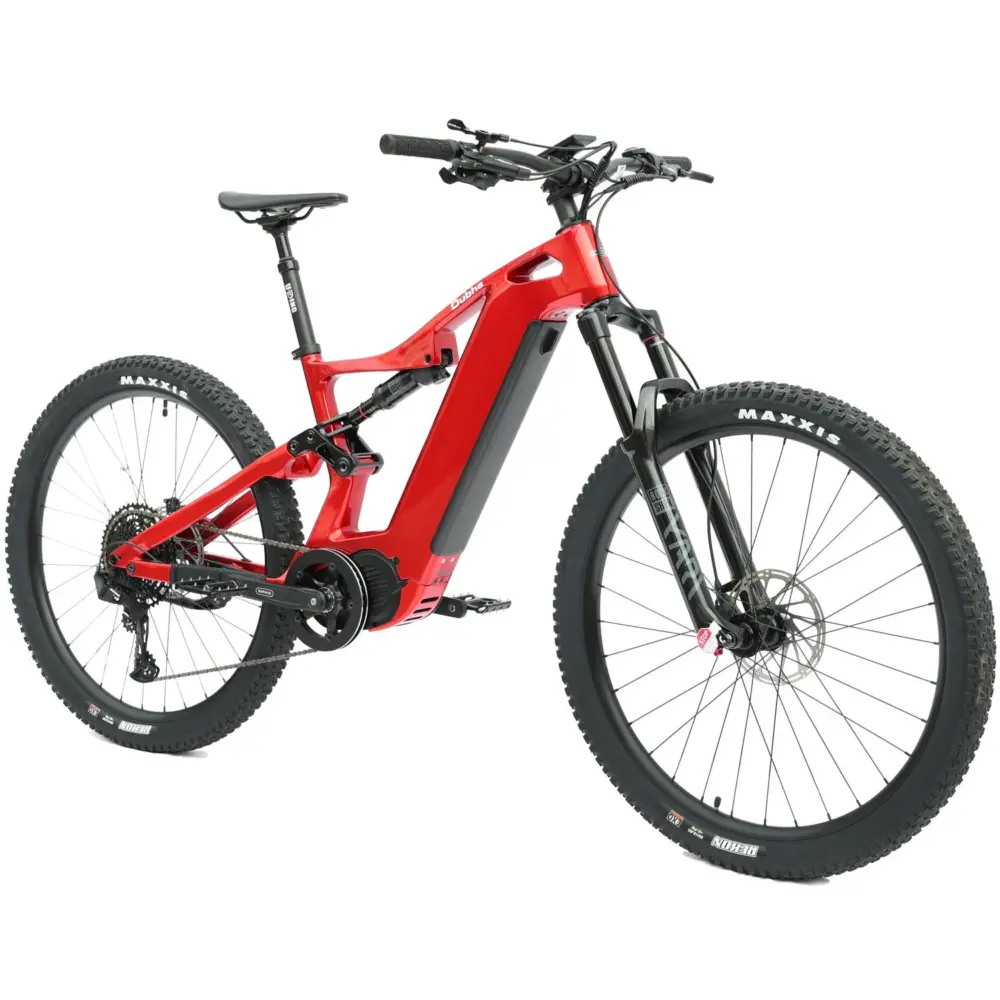

DengFu Winice E55 AM Carbon Ebike M620 UART 52V 1000W 20Ah 1040Wh 29er Wheels is a AM mountain E-bike. Equipped with BAFANG M620 UART 1000W 52V Gear sensor motor and 52V 20Ah 1040Wh Lithium-ion battery. TORAY T700 carbon fiber frame, 150mm full suspension, 29er Wheels, internal cable routing, post mount disc brake. used for Trail riding.
| Level: | Economical | Professional | |
| Frameset | |||
 |
Frame | TORAY T700 carbon fiber, 150mm travel, internal cable routing, post mount disc brake, 148x12 thru axle. | |
 |
Fork | DengFu suspension fork 170mm travel, 1 1/8"-1 1/2"(OD62mm,ID56mm). | SRAM yari fork 160mm travel, 1 1/8"-1 1/2"(OD62mm,ID56mm). |
 |
Seat post | Aluminum seat post,31.6mm diameter, 350mm drop. | UDING suspension seat post, 150mm travel. |
 |
Headset | 1 1/8"-1 1/2"(OD62mm,ID56mm). | |
| Motor | |||
 |
Motor | BAFANG M620 UART 1000W 52V shift sensor. | |
 |
Sensor | Torque sensor | |
 |
Battery | Rhino Lithium-ion LG cells 52V 20Ah 1040Wh, 4A Fast Charging. | |
| Drivetrain | |||
 |
Thumb throttle | With thumb throttle | |
 |
Rear Derailleur | Shimano M4120. | SRAM SX 12S. |
 |
Front Derailleur | W/O | |
 |
Crankset | BAFANG EB11 170mm 40T double chain guard. | |
 |
Cassette | Shimano M4100 11-46T 10 Speed. | SRAM SX 12S 12 Speed. |
 |
Shifters | Shimano M4100. | SRAM SX. |
 |
Brakes | Attack 4 Piston Brakes. | SRAM G2. |
 |
Chain | KMC 10S 128 links. | SRAM SX. |
 |
Rotor | Disc size: 180mm Z8. | |
| Wheelset | |||
 |
Wheels | 36mm-29er Aluminum Alloy+MT922 Hub+DT Spokes, 32/32 holes. | |
 |
Tyre | MAXXIS 29erx2.6"/27.5erx2.6". | |
| Components | |||
 |
Rear Shock | DNM 210x55 Air Cylinder (70mm), 32.3/16.8 Bush. | SRAM 230x60 ordinary style(50mm). |
 |
Handlebar | Aluminum Swallow Handle 800mm. | |
 |
Stem | Aluminum 45mm. | |
 |
Saddle | TTZ008 Comfortable, Black. | Comfortable, Black FIZIK. |
 |
Pedal | Alloy pedals. | |
| Size | 17"(M) | 19"(L) |
| A | 609 | 632 |
| B | 459 | 481 |
| C | 573 | 573 |
| D | 440 | 480 |
| E | 478 | 478 |
| F | 64º | 64º |
| G | 77º | 77º |
| H | -20 | -20 |
| I | 1283 | 1307 |
| J | 125 | 130 |
| K | 51 | 51 |
| HB | 800 | 800 |
| STEM | 45 | 45 |

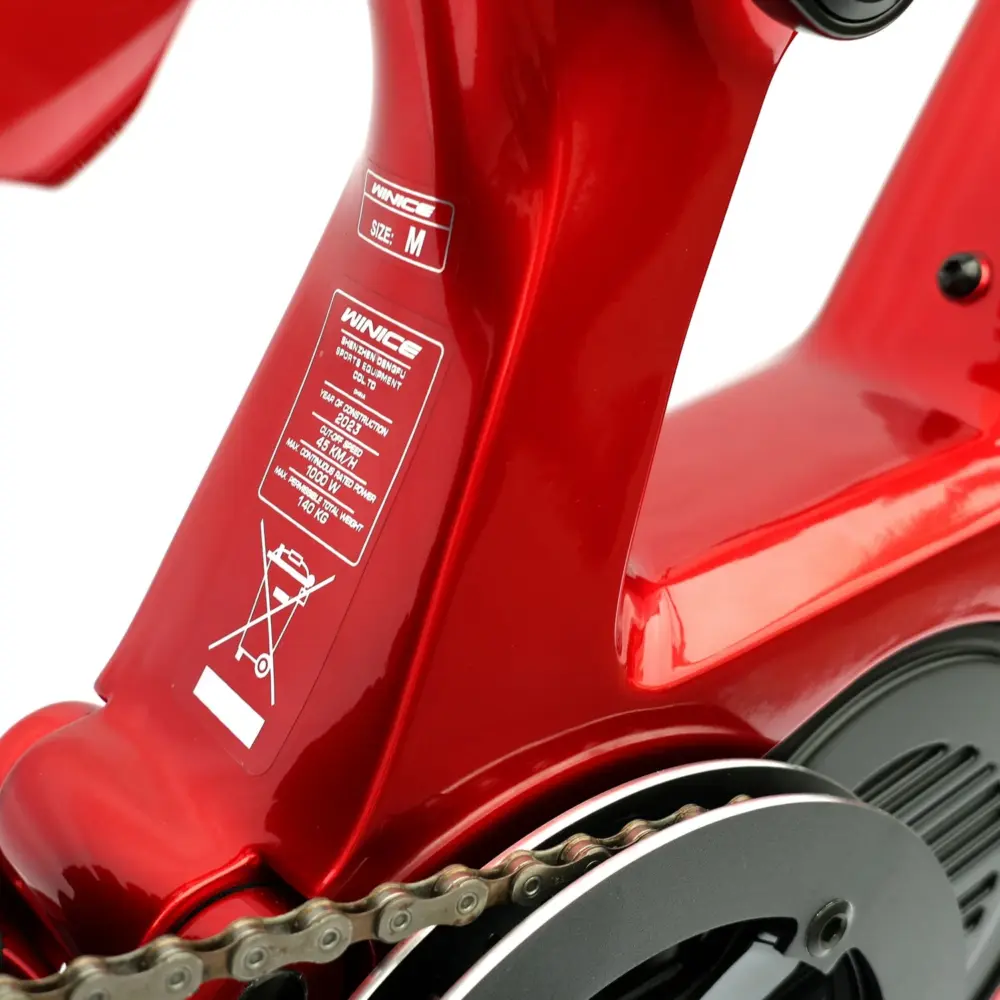

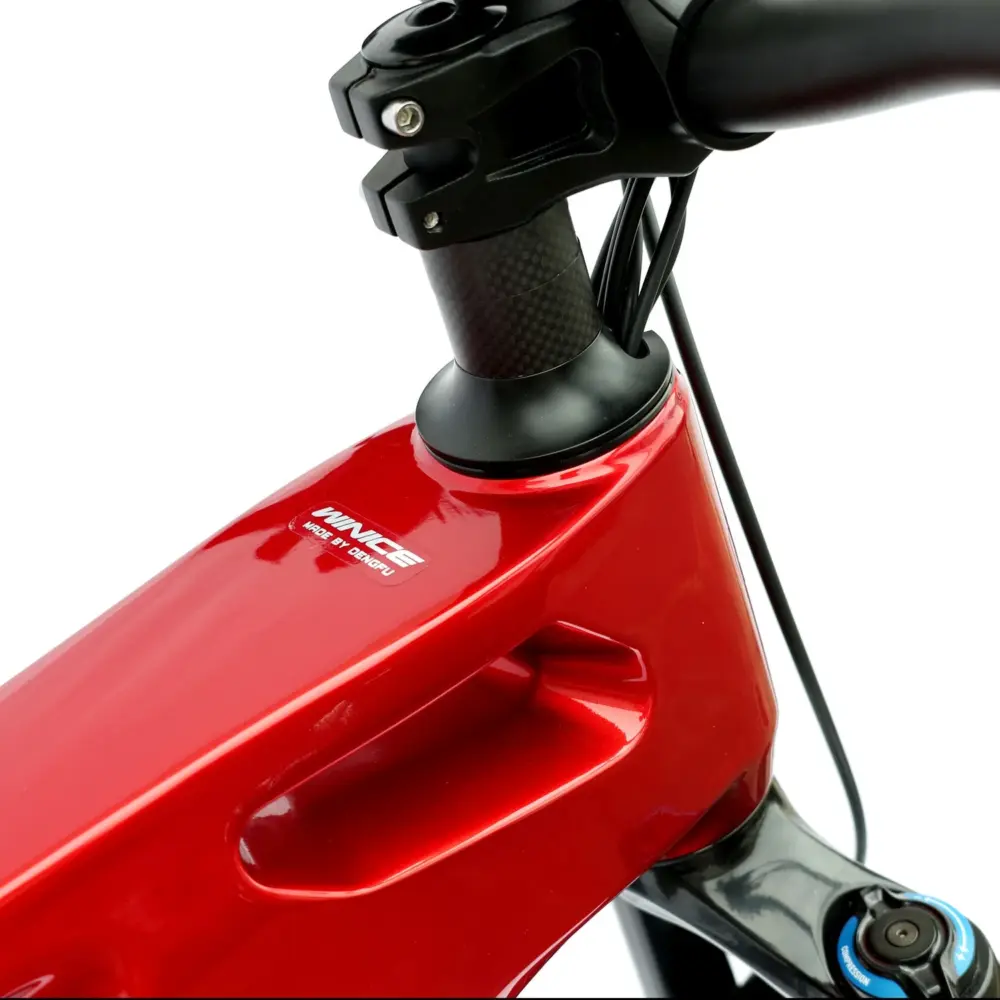

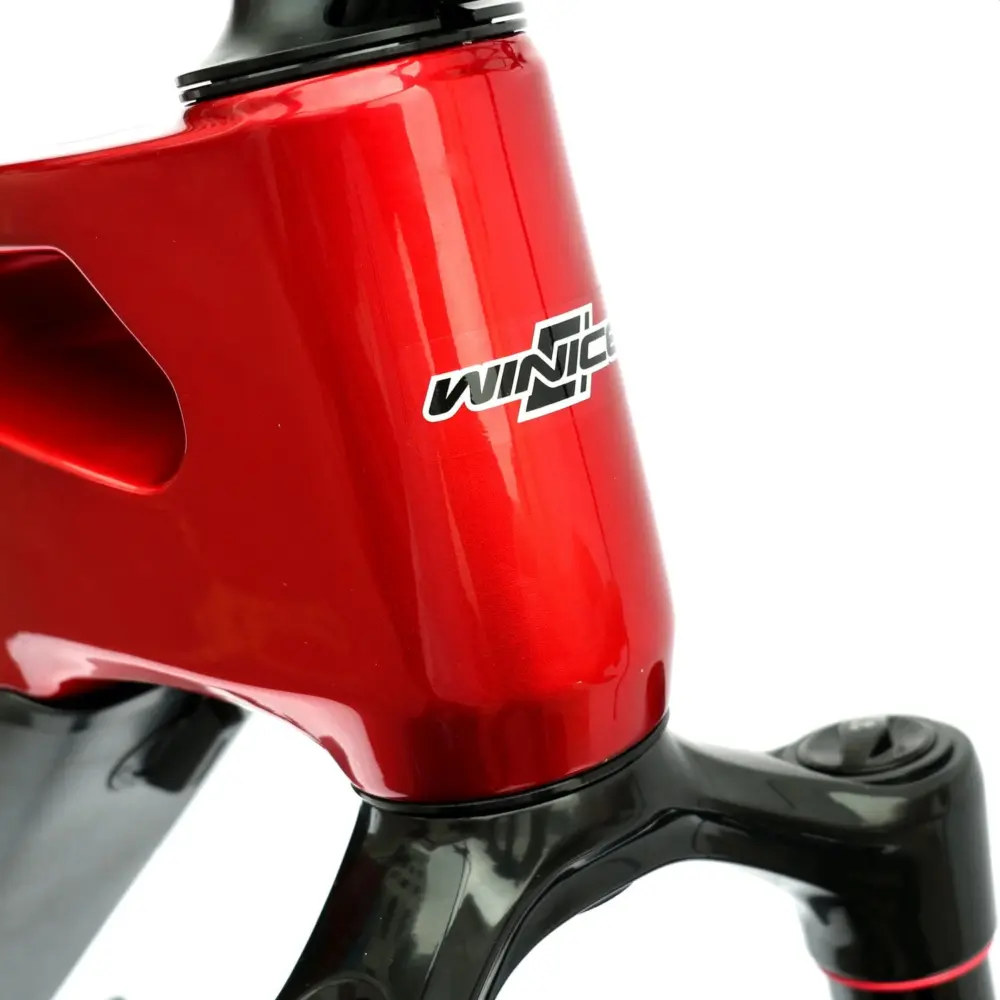

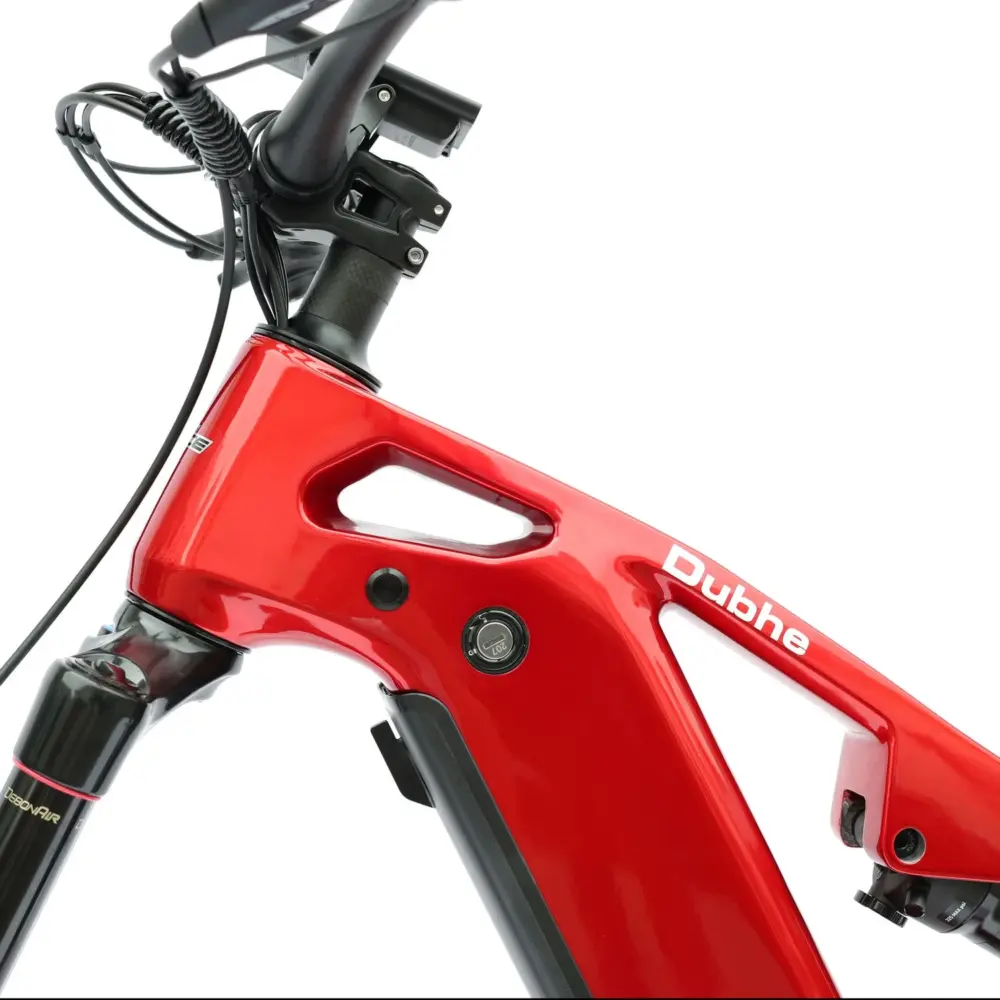

Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

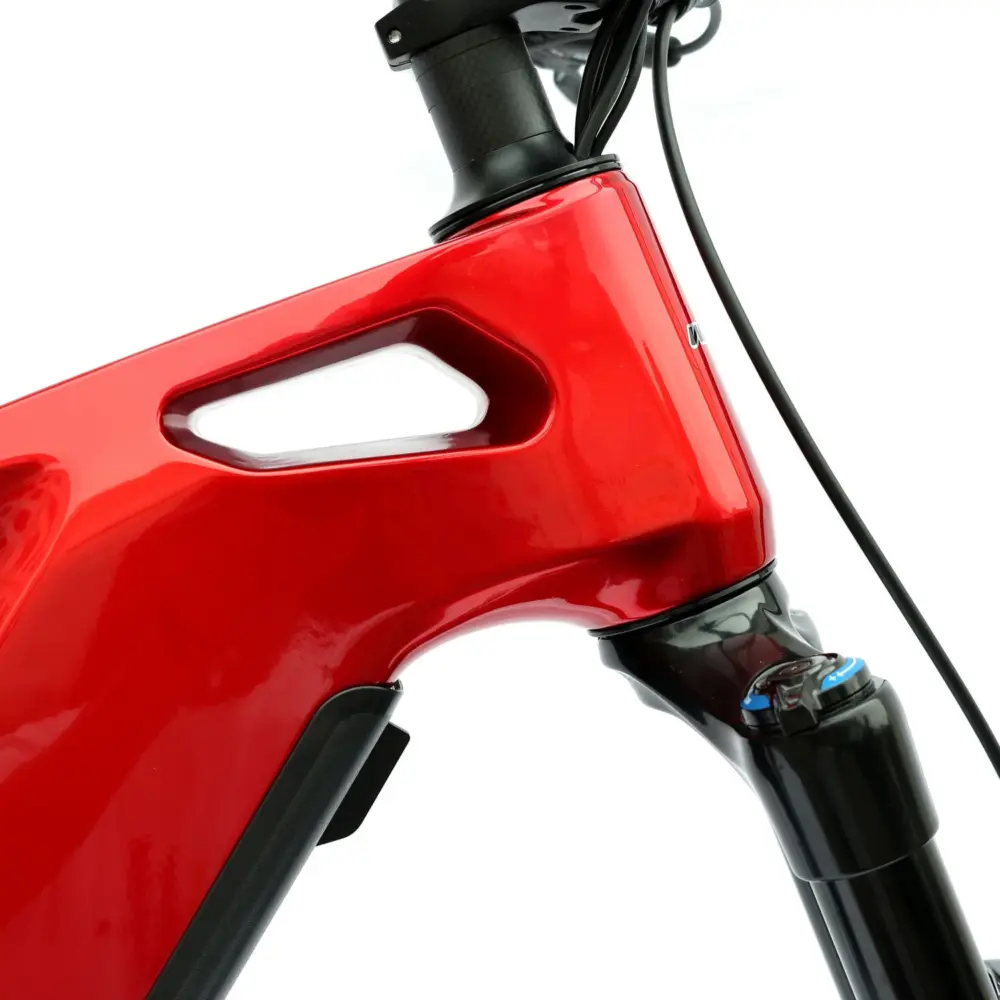

Internal cable routing gives the bike a sleek, tight and attractive look.
Economical
DengFu suspension 170mm travel black fork,
or DengFu suspension 170mm travel gold fork.
Professional

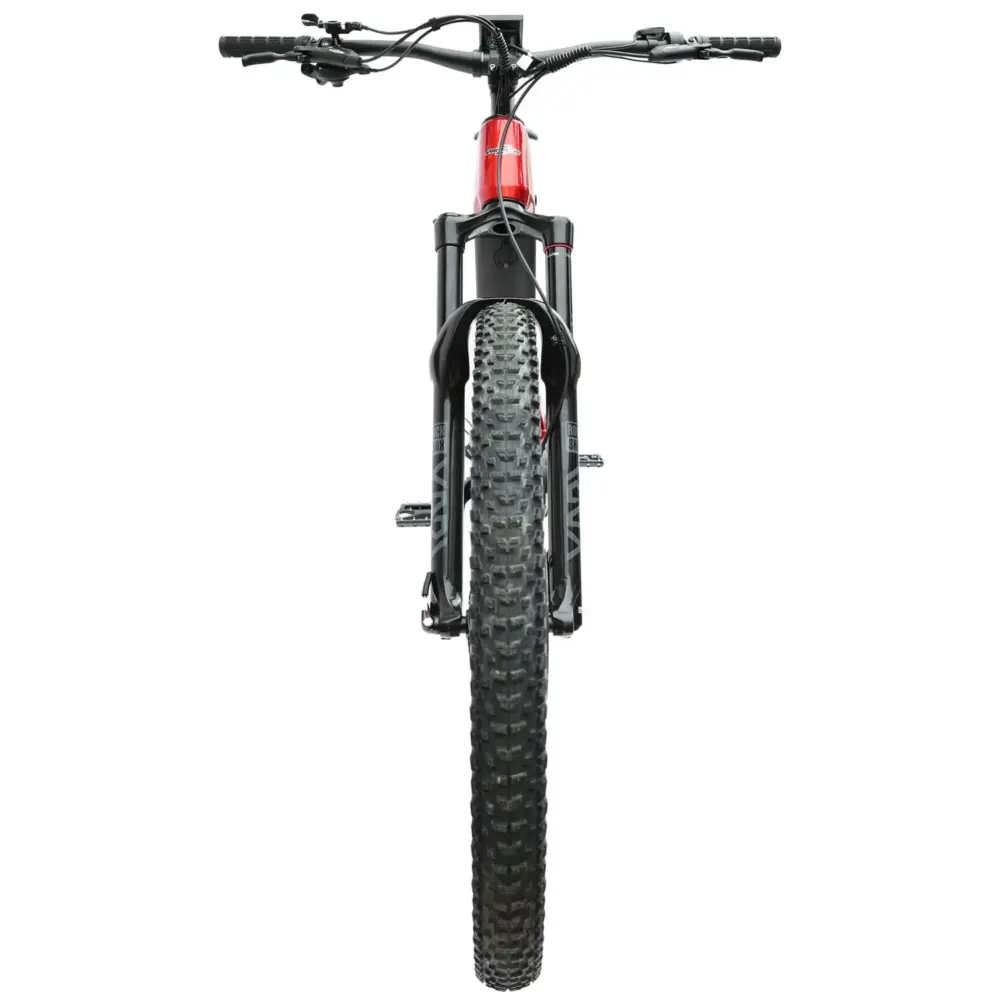

SRAM yari 160mm travel fork.
Economical
DNM 210×55 Air Cylinder 32.3/16.8 Bush(70mm).

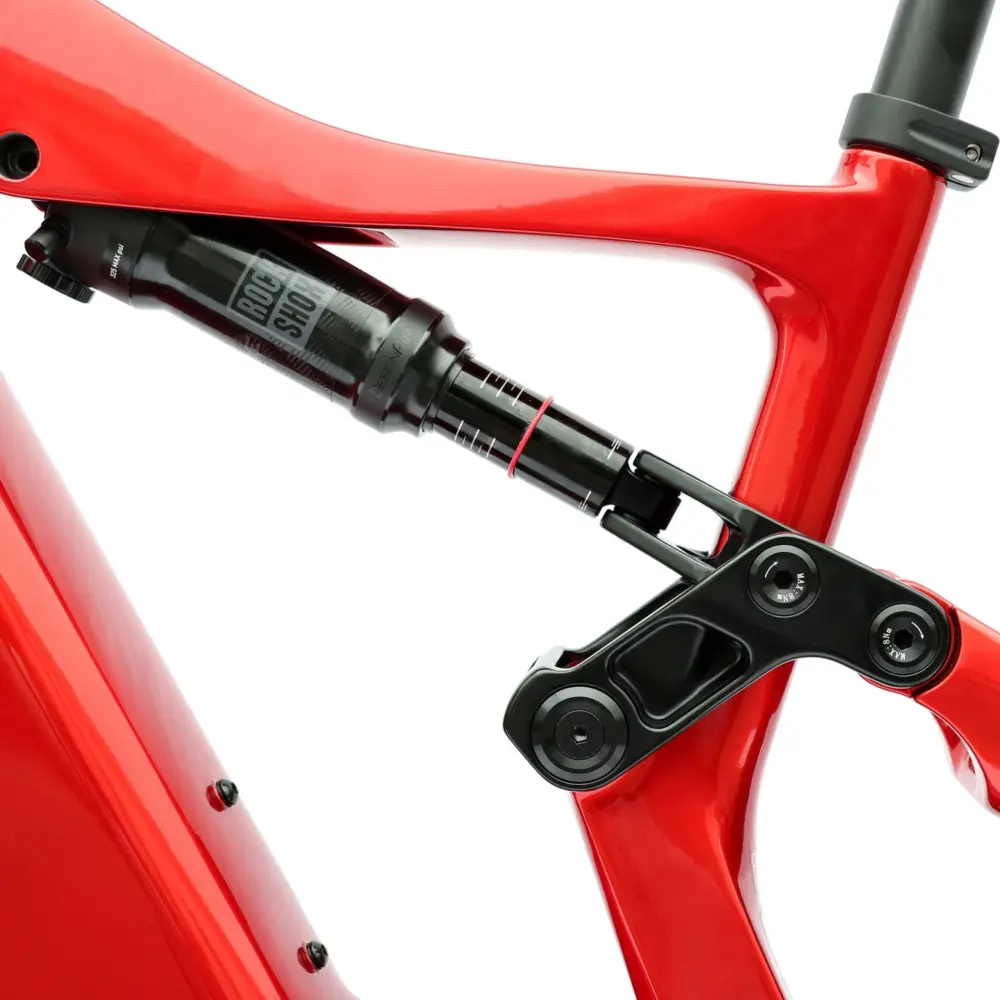

Professional

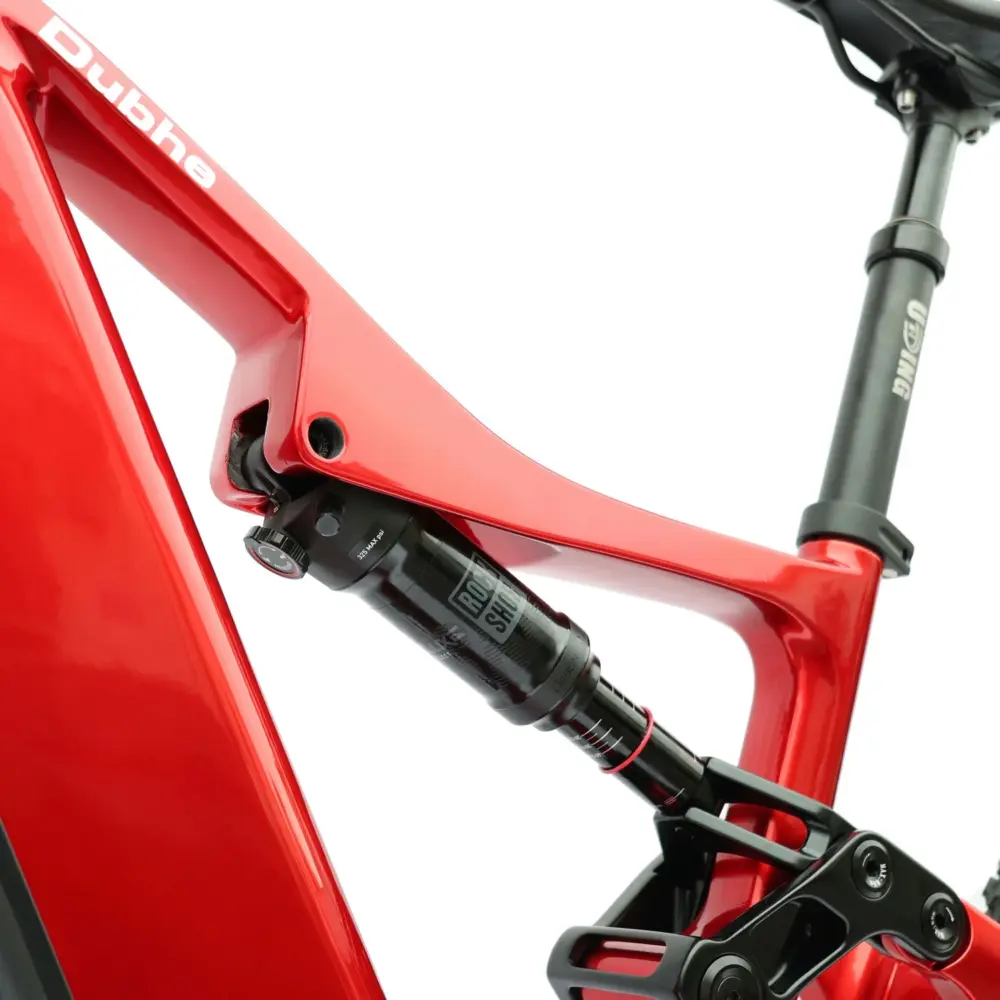

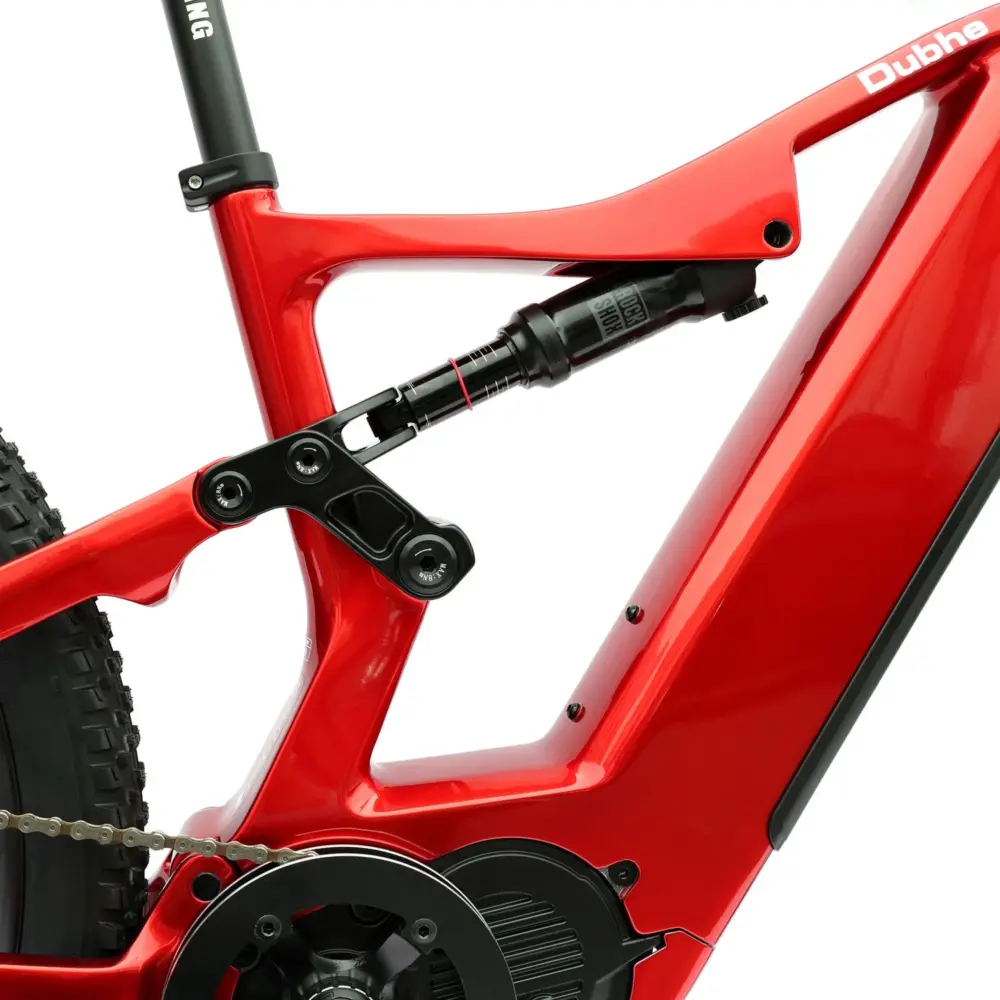

SRAM 230×60 ordinary style(70mm).

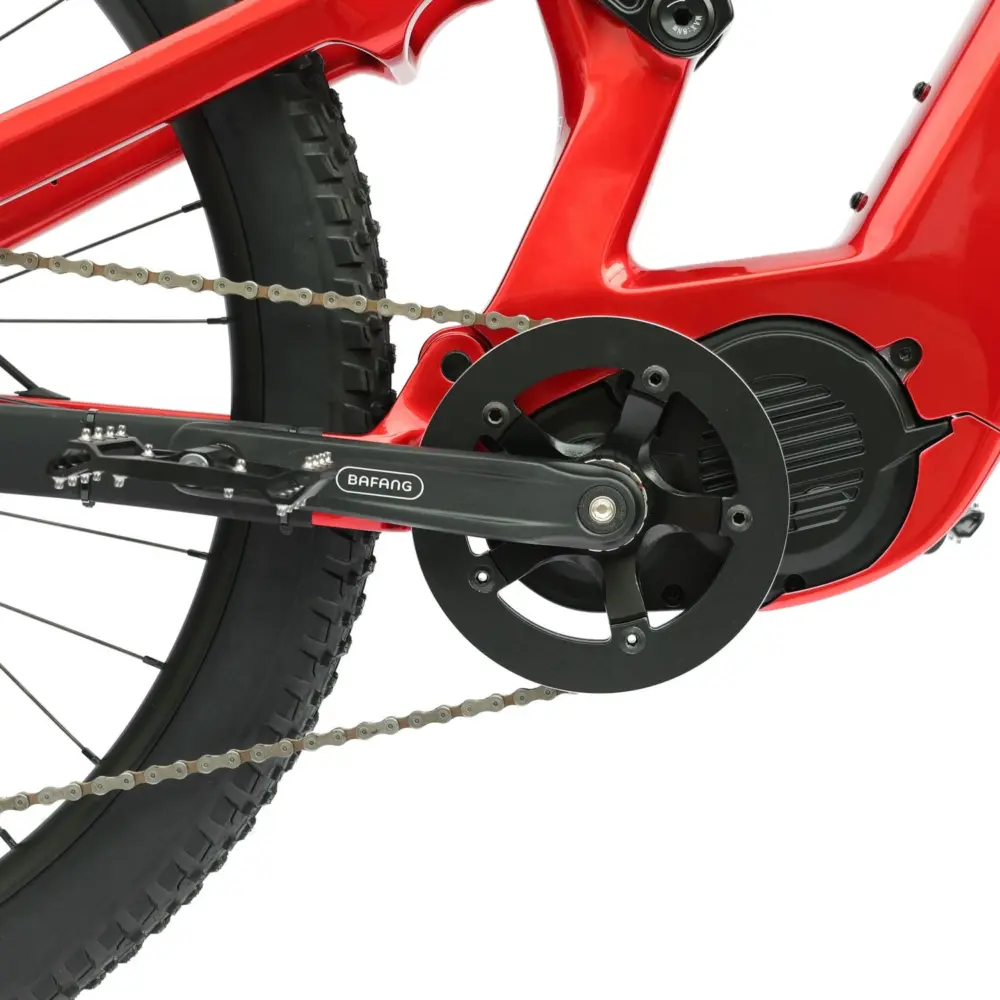

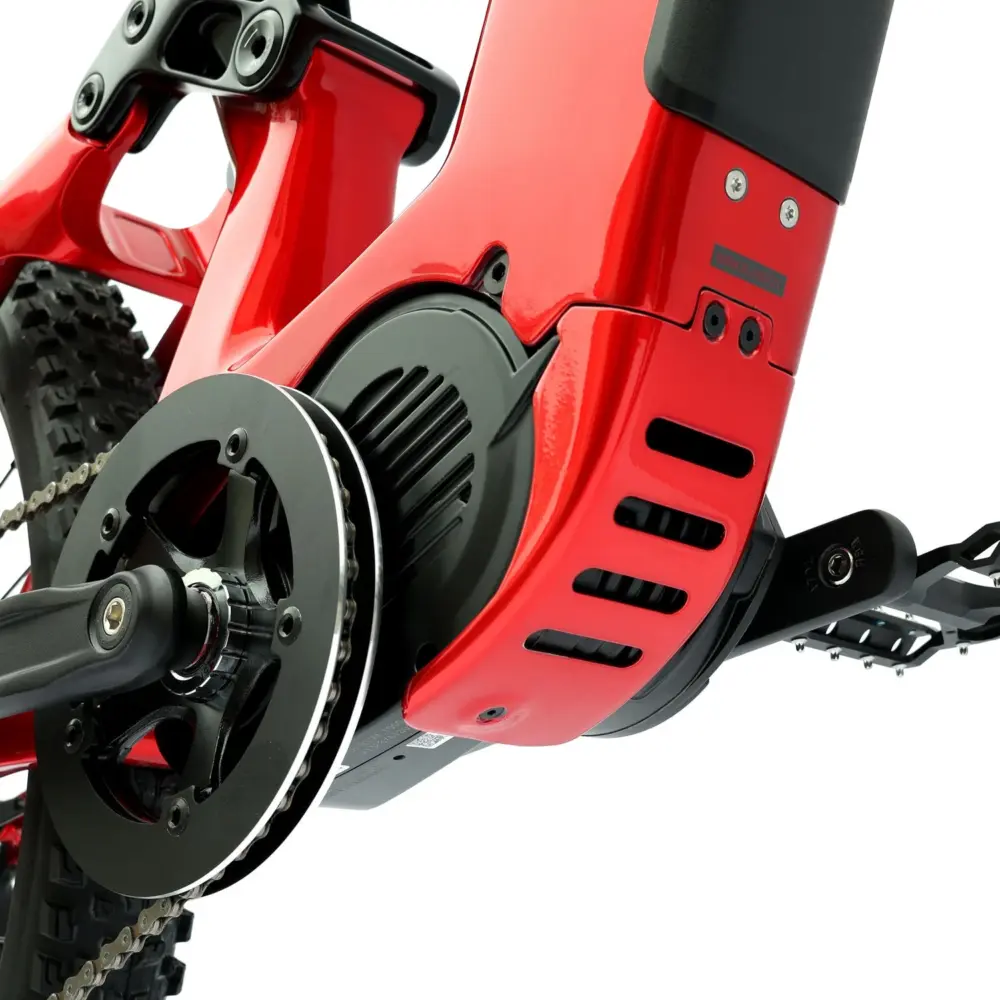

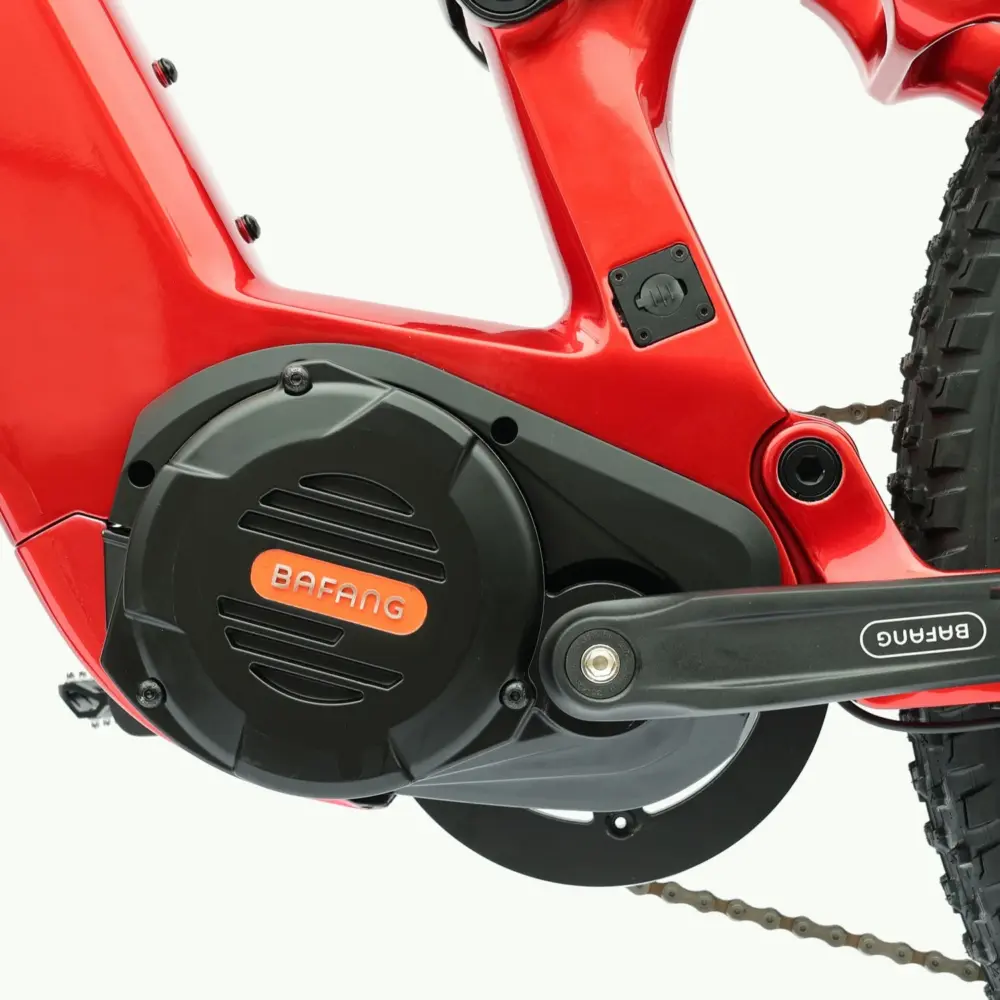

BAFANG M620 UART 1000W 52V Gear sensor.
Rhino Lithium-ion 52V 20Ah 1040Wh, 4A Fast Charging.
Economical
Shimano M4120 Rear Derailleur Shimano M4100 Shifters and Shimano M4100 11-46T 10 Speed Cassette.
Professional

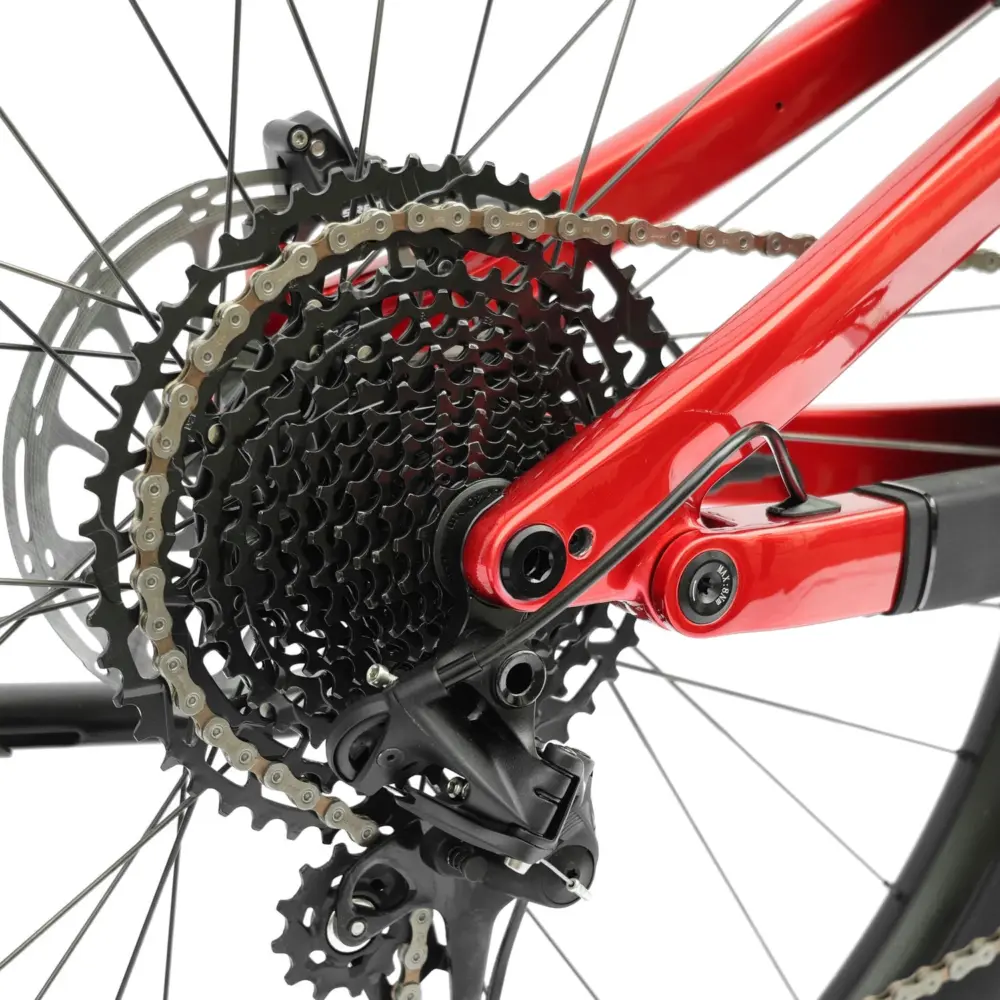

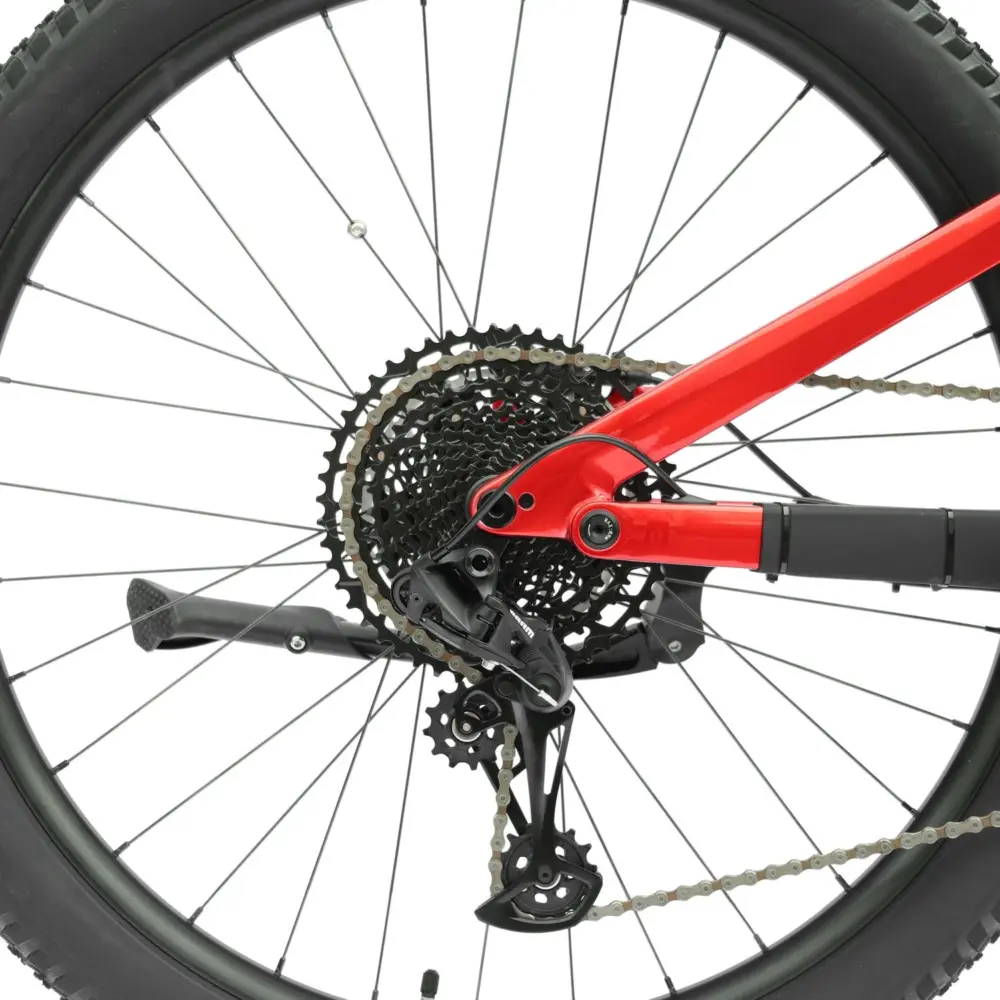

SRAM SX Rear Derailleur SRAM SX Shifters and SRAM SX 12 Speed Cassette.
Economical
Attack 4 Piston Brakes.
Professional

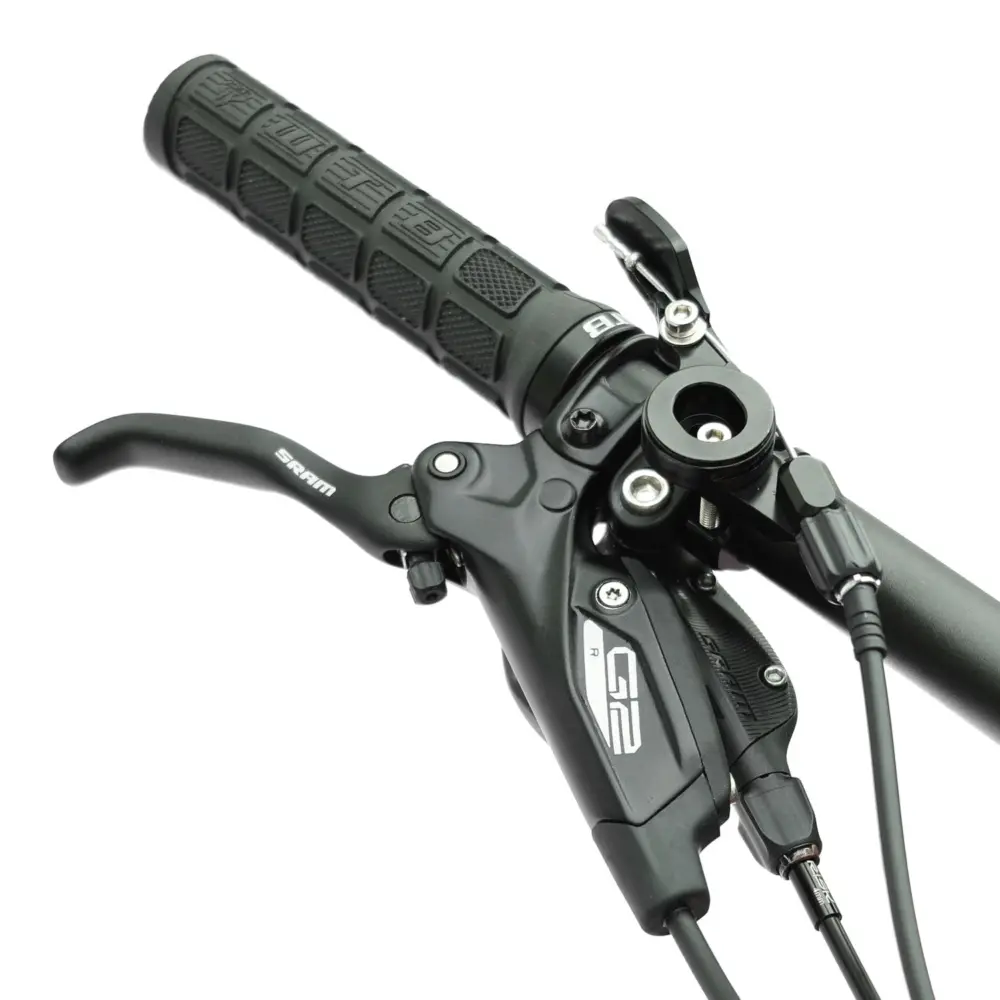

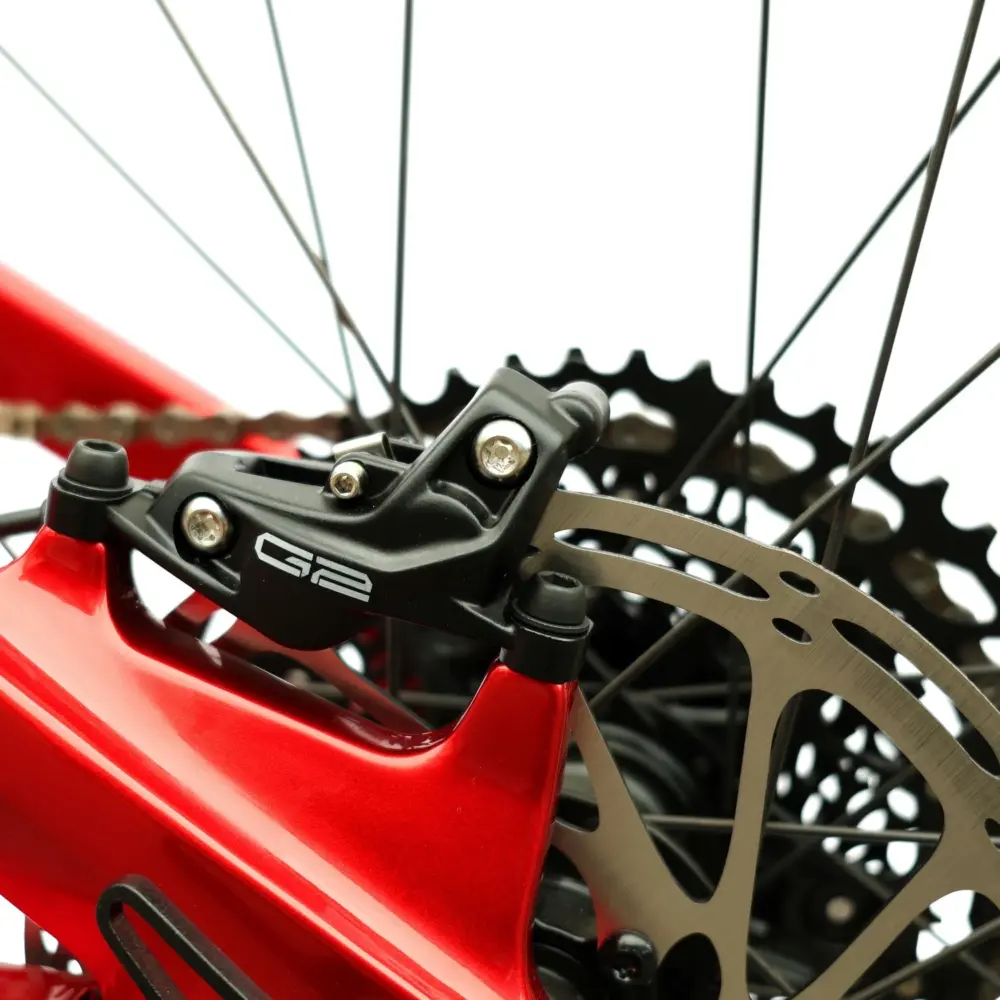

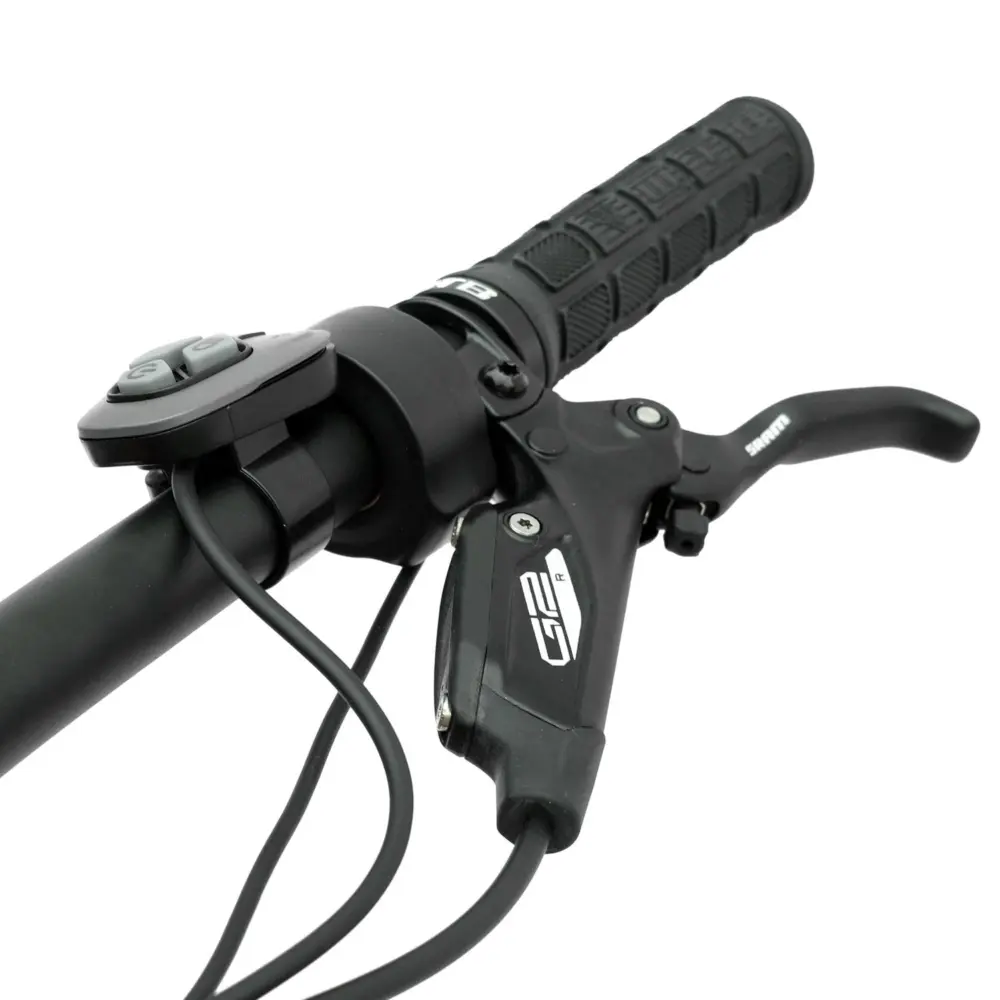

SRAM G2 Brakes.
BAFANG Display and Aluminum Swallow Handle 800mm.

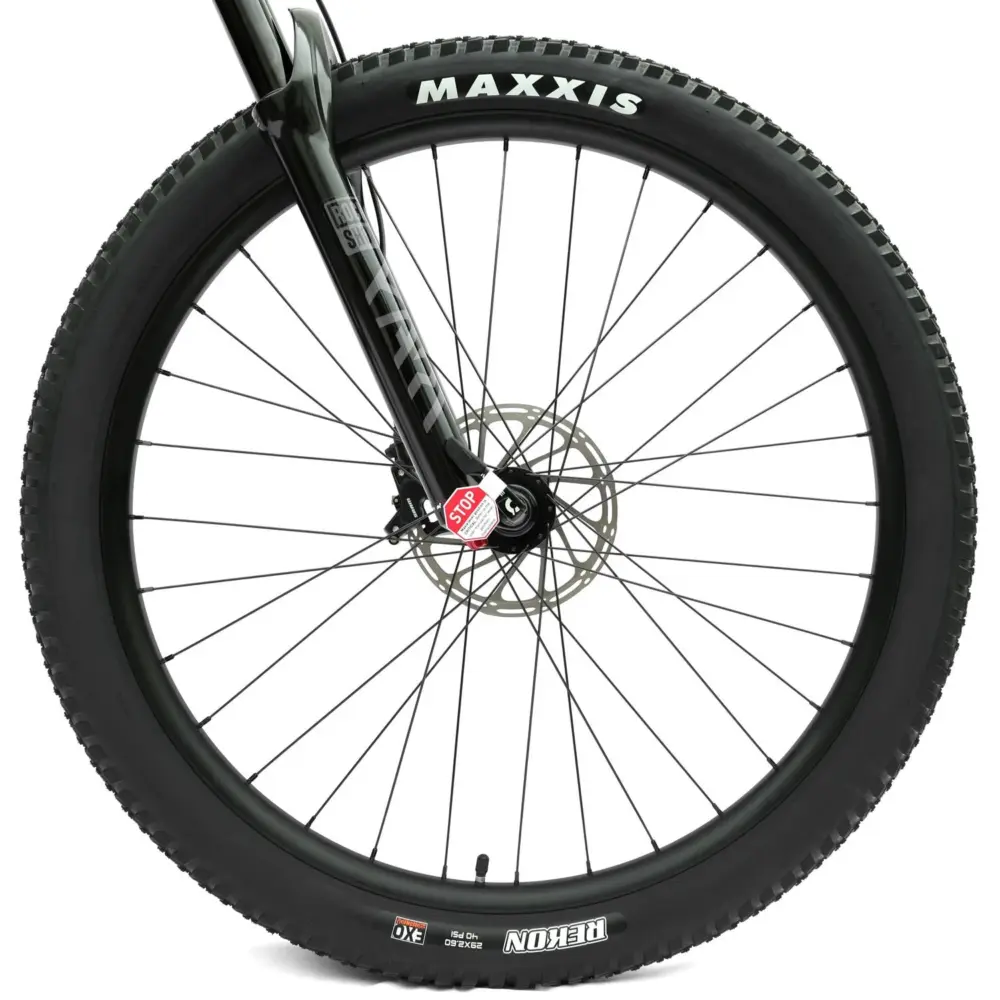

36mm-29er Aluminum Alloy+MT922 Hub+DT Spokes, 32/32 holes. and Tyre MAXXIS 29er x2.6.
Economical
TTZ008 Comfortable Black and Aluminum seat post 31.6mm diameter 350mm drop.
Professional

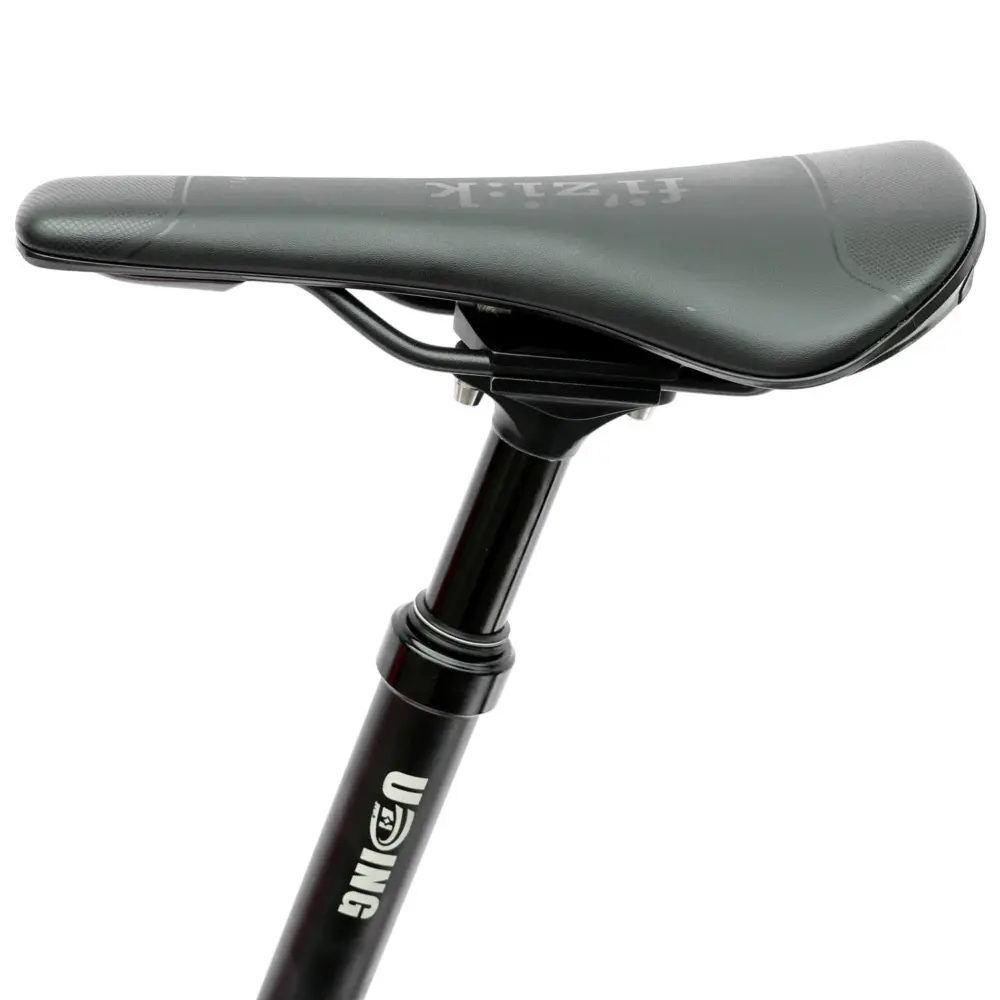

Comfortable, Black FIZIK and UDING suspension seat post 150mm travl.
Rotor 180mm DISC Brake.
| Weight | 30.5 kg |
|---|---|
| Dimensions | 162 × 30 × 87 cm |
| Wheel Size | 27.5er, 29er |
| Frame Color | Black_Matt, Red_Glossy, White_Glossy, Blue_Glossy |
| Level | Economical, Professional |
| Frame Size | 17"(M), 19"(L) |
| Winice Logo | Without Logo |
| Los Angeles warehouse FREE Shipping | United States only.Free shipping to the US only from the Los Angeles warehouse,except Alaska and Hawaii. |
Free shipping to the 48 contiguous U.S. states when ordering from our American warehouse. (Alaska and Hawaii excluded.) 2-3 business days from order to shipment. And we DO NOT ship to PO BOXES or APO. A shipping confirmation email will be sent to the email address attached to your order once the order has shipped.
All ebikes purchased here are under FREE returns within 7 days of delivery (Your items will be free from operation fee, while shipping fee will still be included). To return an ebike that is not defective or damaged, please contact the customer service team(PST) within 7 days. Returns are NOT allowed after 7 days.
Max –
DengFu Winice E55 AM Carbon Ebike – Absolut beeindruckend!
Ich habe das DengFu Winice E55 AM Carbon Ebike jetzt seit einigen Wochen in Gebrauch und bin mehr als begeistert! Dieses E-Mountainbike ist ein absolutes Highlight für jeden Trail-Fan und bietet alles, was man für anspruchsvolle Offroad-Abenteuer braucht.
Zunächst einmal ist der BAFANG M620 UART 1000W Motor ein wahres Kraftpaket! Er zieht mühelos den steilsten Hügel hinauf und sorgt für eine hervorragende Beschleunigung, selbst bei anspruchsvollen Anstiegen. Die 52V 20Ah Batterie mit 1040Wh sorgt für eine beeindruckende Reichweite, sodass ich selbst längere Touren ohne Angst vor einem leeren Akku unternehmen kann.
Der TORAY T700 Carbonrahmen ist nicht nur leicht, sondern auch extrem stabil. Dadurch fühlt sich das Bike auf jeder Art von Gelände sicher an – sei es auf felsigen Pfaden oder bei rasanteren Abfahrten. Mit der 150mm Full-Suspension fährt sich das Rad auf unebenem Terrain unglaublich komfortabel und absorbiert Stöße sehr gut.
Die 29er Räder bieten zusätzlich eine tolle Stabilität und erleichtern das Überwinden von Hindernissen wie Wurzeln oder Steinen. Auch die Post-Mount-Scheibenbremsen liefern eine zuverlässige Bremskraft, selbst bei nassen oder schlammigen Bedingungen.
Das Design mit internem Kabelmanagement sorgt nicht nur für eine saubere Optik, sondern schützt die Kabel auch vor äußeren Einflüssen. Zudem sieht das Bike einfach unglaublich schick aus – die Kombination aus Carbonrahmen und modernem Look ist wirklich ein Hingucker.
Kurz gesagt: Das DengFu Winice E55 AM Carbon Ebike ist perfekt für alle, die ein leistungsstarkes, robustes und gleichzeitig komfortables E-Mountainbike suchen. Ich kann es nur empfehlen – ein echtes Must-Have für jeden Trail-Enthusiasten!
Suresh Vilayanur (verified owner) –
Just bought a size L and find this bike amazing . So well designed and it looks phenomenal. It’s very powerful due to the 1000w motor and it rides so well over all terrains. But to be honest what struck me most was the detail and the quality of the components. I will surely be buying more bikes from Dengfu
Mike (verified owner) –
I got the E55 pro spec. I have put a few hundred miles on it now. The motor and battery is strong. The Yari forks feel so planted on the gnarl. It’s powerful! Here is a couple notables- mine actually came with the Bafang M510. The difference from the M620 is the 510 has Nylon gears. It’s fairly quiet so I like it. My shifter only has 10 clicks but I have 12 gears. Still trying figure that out. But otherwise I am loving these components. Quality at a good price!!! Oh and the bike shreds amazingly! Brakes are excellent.
Jeffrey (verified owner) –
The bike came as advertised. It was easy to assembly with no problems. I really like to Air Shocks and find them to be much better than my other shocks. Shifting is crisp and grabs a gear quickly. Display work well, it is easy to use. I wish the charging port was higher on the frame, I always seem to get mud on mine. Yes, the rubber plug is there but is a pain to use. Also, I wish I could adjust the torque sensor to get to high power sooner. I use the finger control on many hills in the dirt. Overall I am pleased with my purchase and have recommended it to friends in our riding group.
AL DOBLE (verified owner) –
This is my first emtb. I am very impressed with the packaging and the performance. I just wish I couldve ordered the bike with the professional suspension setup with 27.5 tires. Nonetheless, the bike performs well and beyond my expectations.
Stephen (verified owner) –
If your reading this your probably thinking about getting something you know you already want. Do it. This thing is a blast. I’m a large guy, 6’2”, 225 lbs and this 19” fits great. I have both mountain bike and moto experience. I really wanted enough power and performance not miss either. My last, or I should say other e-bike, is a fat tire rear hub 2000w bike. It’s awesome until the trails get serious. This E55 absolutely kills it once it finds it home amongst the rocks and roots of Cape Cods endless single track. This is my first mid drive experience and have been impressed with the amount of torque. The delivery is so much different and than the hub motor I’m use too. It has exceeded my expectations for what I thought an e-bike to be capable of. FYI, another great attribute is the pseudo stealth of the bike. The M620 is relatively quiet and the frame suggests I belong in some of the areas I frequent.
Michael (verified owner) –
I have owned dozens of bikes in my life, but this is my first EMTB.
Months of research led me to believe this bike to be the best value in the sector, and I was not mistaken.
I went with the Economical version and it has done everything I’ve wanted it to, and more!
The capability of the power assist is incredible, at 175lbs I usually just leave it in a middle setting under “Eco” mode, and I climb all types of terrain.
When in Eco I have got 45 miles of range, which consisted of 80% hilly trails.
The overall quality is that of any big brand cycle I’ve bought, and it is a literal fraction of the cost.
Now I just need to convince my girlfriend to get one.
Brett (verified owner) –
Great bike for getting around the trails in suburban Sydney.
Everything has worked out well with the purchase process, shipping and the bike quality is fantastic!
While I can program the UltraMax motor, I found no need to even bother with this bike.
It’s been a joy!
Danny (verified owner) –
This bike is excellent for the DIY-oriented mind or general trail rider. I ordered the economic model with upgrades in mind. Within a few months, I upgraded the bike to fit my needs. Overall, it is a powerful and well-equipped frame and motor.
The warranty is sluggish. It took approximately 1.5 months to receive a new motor. The motor controller was faulty from the factory which caused a battery voltage misreading.
Upgrades to date:
– Sram NX Eagle PG-1230 cassette
– Sram NX Eagle Chain
– Sram GX Eagle Trigger Shifter
– Sram GX Eagle 12 Speed Long derailleur
– Sram Eagle X-SYNC 2 Chainring 38t
– Rockshox Lyrik Ultimate Charger 3 RC2 Fork
– Rockshock Maxle Thruaxle front
– Rockshock Deluxe Ultimate RCT Shock
– Rockshock Reverb Stealth Dropper
– Raceface Affect-R Pedals
– Raceface Affect-R Cranks
– Magura MDR-P 203mm rotors
– Magura MT7 Pro Brakes
– Magura QM44 Adapters
– Magura Shiftmix 3
– Galfer E-bike Compound Brake Pads
– Industry Nine A35 Stem
– Maxxis Assegai 29 x 2.5 Front Tire
– Maxxis Minion DHR II 29 x 2.4 Rear Tire
– Wolf Tooth Compression Plug
– Wolf Tooth Chainring bolts
– Reserve Wheels Fillmore Valve Stem
– Ergon GE1 EVO Factory Grips
– Ergon SM E-MTB Saddle
– Renthal Fatbar 35 Handlebar
– Eggrider V2 Display
– Outbound Lightning Downhill Package
– Custom Blue Vinyl Wrap
winice –
Fistly we are sorry about the motor problem caused your inconvenience. As the motor is from Bafang, thus we had to follow Bafang’s warranty policy. After you reported it to us, we immediately forwarded it to Bafang. And we need some time to confirm the problem with Bafang. Finally after we confirmed the problem, Bafang gave us the solution. Then we had been waiting for Bafang to send us the replacement part to solve the problem. Thus the time of 1.5 month is normal for Bafang. But we will also forward to Bafang and ask them to improve. Thank you again for your comment.
David (verified owner) –
I’m thoroughly enjoying my Winice electric mountain bike (EMTB). I’ve been riding it daily at my local MTB park, and it handles the trails with absolute precision. It’s been turning heads because of its unique design, and I’ve already put 60 miles on it without encountering any issues. I can wholeheartedly recommend this EMTB to anyone looking for a great riding experience.
MidwestRider (verified owner) –
E55 is a good quality bike at a very competitive price. The M620 motor is very powerful and makes the uphill climb fun. The 1KW battery keeps the motor going for more than one trip with multiple runs on each. The components are entry level but do not need immediate upgrades. You can upgrade them as you go, spending your money where you need it most. The tires come tubeless ready for setup. The assembly of the bike was good, and just needed minor fit adjustments like brake level angles.
The communication from DengFu for answering questions and order status has been excellent. I am very satisfied with my purchase and highly recommend them.
Gary (verified owner) –
This bike is a Great value for the price, Good components, Powerful M620 BAFANG motor, Carbon fiber frame. Compared to other E-Bikes with the same specifications, This bike is your best choice by far, You can upgrade the suspension and still be under $4000 total. I’m considering Fox 38 forks and Fox 230mm x 60mm rear shock, But it’s not necessary.
