DengFu Winice E56 Frame FAT Carbon 26er M620 In Stock FREE Shipping

(1 Customer Review)

$1,199.00 $850.00 29.1% OFF

Weight7.9 kg
Dimensions108 × 28 × 61 cm
Frame Color

Black_Matt, Red_Glossy

Frame Size

17"(M), 19"(L)

Los Angeles warehouse FREE Shipping

United States only.Free shipping to the US only from the Los Angeles warehouse,except Alaska and Hawaii.

In Stock

Stock Information

Scroll Location

SKU: N/A Category: Tag:
1000W (160N.m)

Motor Capacity

52V 20Ah

LG Batteries

80-100 miles

Ranges

SRAM or Shimano

Shift System

400 lbs

Payload Capacity

25/32/45(km/h)

Speed Limit

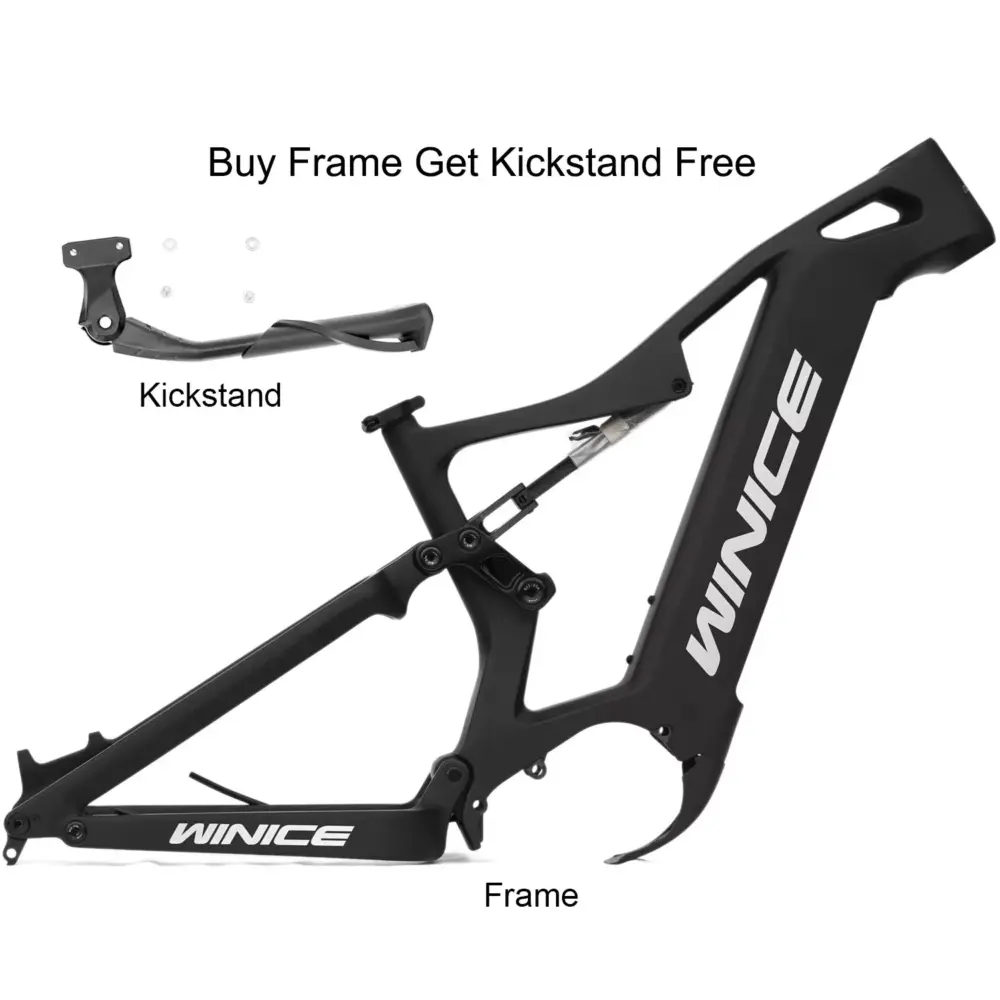

DengFu Winice E56 Frame FAT Carbon Frame

DengFu Winice E56 Frame FAT Carbon Frame is a FAT snow/sand E-bike carbon frame, Include frame and motor cover.Fit BAFANG M620 motor and maximum support 52V 20Ah 1040Wh battery.
Play Video

Specification And Geometry

TORAY Carbon Fiber

Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

"WINICE" Logo

Winice is one of the registered trademarks of DengFu.

FAT E-Bike Axle Distance

197×12mm thru axle, Generally equipped with 26erx4.0″ tire, And the maximum can reach 27.5erx4.0″ tire.

Rear Shock Connecting Rod

70mm connecting rod.

Increase the strength of the head tube

A hole is added to the side of the head tube, which has been verified through testing to enhance the structural strength of the head tube.

Frame Size Label

M size is 17″

L size is 19″

Internal cable routing

Internal cable routing gives the bike a sleek, tight and attractive look.

Motor Slot

Install BAFANG M620 motor in the motor slot.

Rear Derailleur Hanger

Removable and replaceable aluminum alloy rear derailleur hanger.

Motor Cover

The cover has three screws.

Kettle bracket installation position

Screw holes for mounting the kettle bracket.

Rear Axle

Rear Axle with removal handle,Can be disassembled quickly and easily.

Motor Slot And Motor Cover

Frame including motor cover.

1 review for DengFu Winice E56 Frame FAT Carbon 26er M620 In Stock FREE Shipping

  1. Kian (verified owner)

    Bought two E56 one complete and other one red frame and motor only. They’re best for price. I have 400 miles so far and ride them everyday day. Customer service also gets 5star as I needed some help and they solved my issue quickly. I would definitely recommend this company.

    DengFu Winice E56 Frame FAT Carbon 26er M620 In Stock FREE Shipping
    Helpful? 0 1
Add a review
Review now to get coupon!

Your email address will not be published. Required fields are marked *

Shopping Cart

Specification And Geometry

Type E-MTB
Frame TORAY T700 carbon fiber, 120mm travel, internal cable routing, post mount disc brake, 197×12 thru axle.
Frame travel 120mm
Motor BAFANG M620
Battery Rhino Lithium-ion 48V/52V 20Ah
Suitable rear shock 210x55mm/linkage 70mm
Headtube 1 1/2″ 56mm
Cable routing internal
Max tire 26erx4.0″
Finish Matt/Glossy
Include Frame, Motor cover, Headset, Thru axle,
